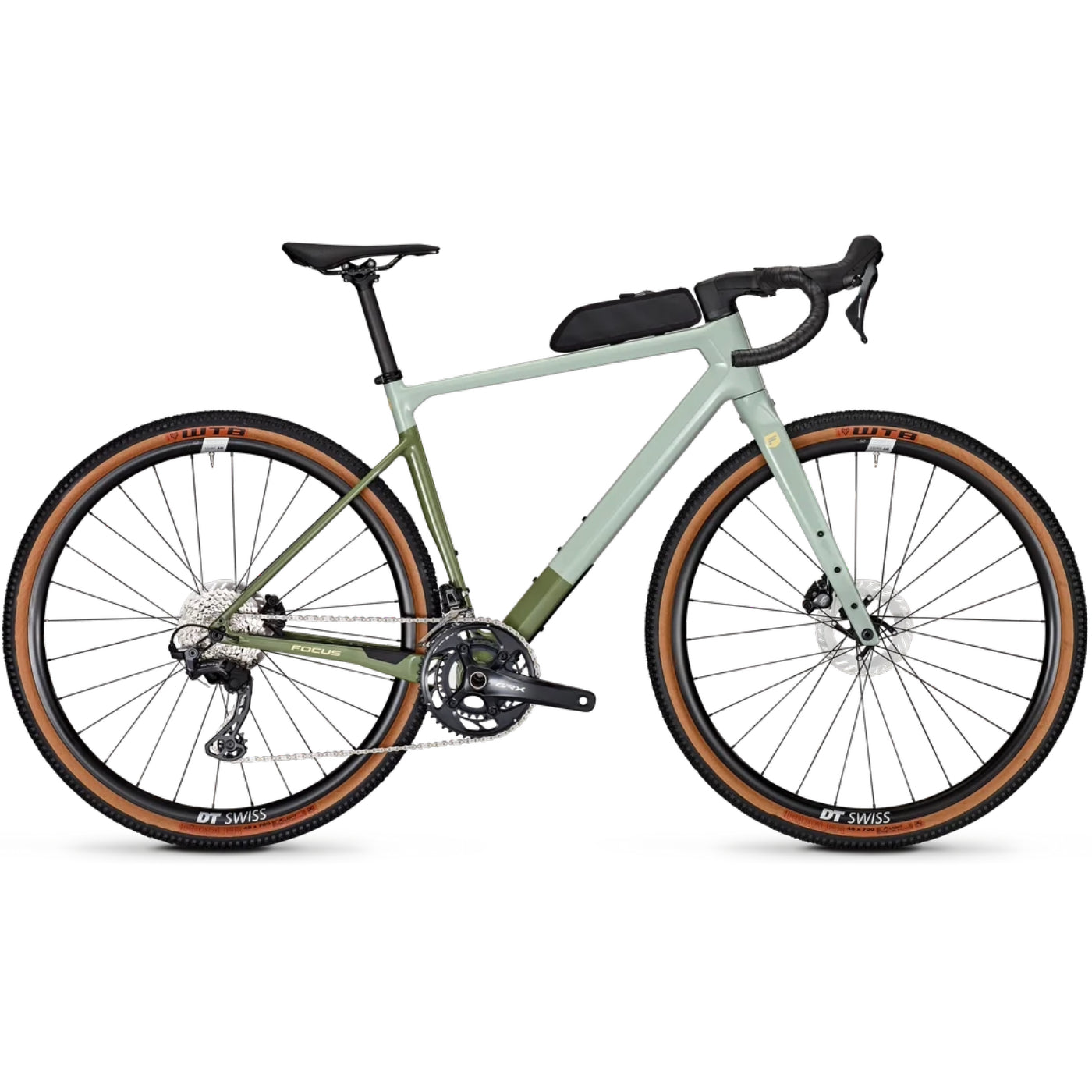

Focus ATLAS 8.8 - Skygrey glossy/Mineralgreen glossy

Knows no boundaries: The ATLAS offers up to 47 mm tire clearance and all mounting options for bikepacking. Whether bad weather, challenging terrain, steep climbs, or swift rides – the fast and comfortable gravel bike offers full control and maximum variability. Wide handlebars with flare and disc brakes provide a lot of safety and comfort for the light and agile carbon bike. Whatever you have planned, the ATLAS will take you there – even to the end of the world.

FAST AND COMFORTABLE ON ALL PATHS

This lightweight carbon bike weighs only 9.1 kg and is designed for your fast gravel adventures. The combination of longer reach and short stem gives the bike an incredibly smooth ride. The front is relatively high, which gives you security on descents. To keep our gravel bike nice and agile, the frame has exceptionally short chainstays. This agility will delight all riders who like to challenge each other, no matter the terrain. To perfectly tackle demanding gravel routes with this fast bike, you can adjust the handlebar position individually to your needs. We offer the stem in six lengths from 70 to 120 mm, and you can adjust the handlebar height using the two-part special spacers.

VARIOUS OPTIONS FOR CARRYING LUGGAGE

The ATLAS 8.8 frame offers numerous mounting points to comfortably transport your bags. A handlebar, saddle, and frame bag can be easily attached. The top tube bag is included with our ATLAS 8.8. Here you can store necessary tools or food to enjoy a small snack during the ride. For bottle holders, the frame offers three additional mounting options. One can be mounted on the seat tube, two more on the down tube – one below and one above. Additionally, the three screws on the left and right side of the fork allow you to attach even more luggage. Here you can attach carriers for additional bags or bottle holders. The ATLAS 8.8 is designed for a maximum system weight (bike, rider, and equipment) of 120 kg.

DESIGNED FOR FAST GRAVEL ADVENTURES

The ATLAS 8.8 features fast-rolling, tubeless-ready 45 mm WTB Riddler tires and a Shimano GRX 810 2x11 group with special gravel gearing for bikepacking adventures. The wide handlebar with flare and the carbon seat post offer a lot of safety and comfort. The C.I.S. (Cockpit Integration Solution) technology ensures a tidy cockpit, with no cables in the way when you want to attach a handlebar bag. Whether bad weather conditions or challenging terrain, if you suffer during steep climbs or conquer really long distances – the ATLAS 8.8 supports you on all your rides, even to the end of the world.

Equipment:
Frame: Carbon, disc, C.I.S integration, press fit BB86, 148x12 mm thru-axle, flat mount 160/160 mm, internal cable routing, Toptube Bag
Fork: Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
Crankset: Shimano GRX FC-RX610, 12-speed
Cassette: Shimano 105 CSHG710, 12-speed
Chain:  Shimano CN-HG601, 12-speed
Rear Derailleur: Shimano GRX RD-RX820, 12-speed
Front Derailleur: Shimano GRX FD-RX820
Number of Gears: 24
Shift/Brake Levers: Shimano GRX ST-RX820
Brakes: Shimano GRX BL-RX810
Front Brake Disc: 160 mm
Rear Brake Disc: 160 mm
Wheel Size: 28 inches
Wheel Set: DT Swiss GR1600, 24-622, 12x110 mm / 12x148 mm, ,25 mm height
Tires: WTB Riddler, 700 x 45C, folding
Stem: Focus C.I.S. 2.0 integrated, 31.8 mm, aluminum, with Garmin / Wahoo-Mount
Handlebar: Easton EA70 AX, 31.8 mm, drop: 125 mm, reach: 80 mm, flair: 16 degrees
Seat Post: Lee Chi SP-926, Carbon, 27.2 mm, set-back: 0 mm
Saddle: Prologo Akero
Maximum Permissible Total Weight: 120 kg

* Specification may vary in details in exceptional cases, depending on the manufacturer.
