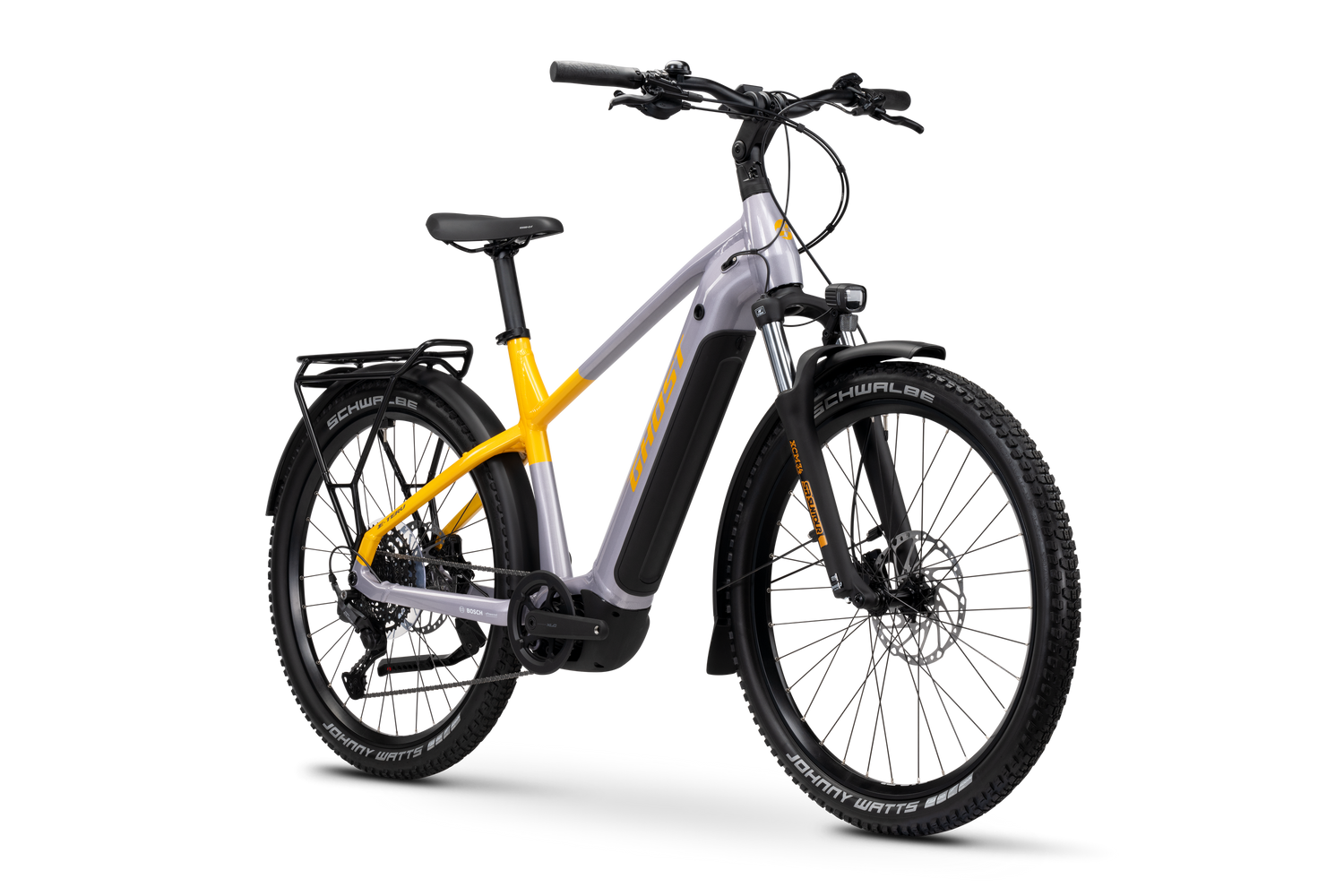

Ghost E-TERU Universal EQ High Uni atlantic blue/coffee ice rose - glossy

Your go-to e-bike for every day: The GHOST E-Teru Universal EQ brings stability and comfort with its mountain bike DNA - both on the road and on rocky and rooted forest paths. The robust aluminum frame and the SR Suntour air suspension fork with 100 mm travel ensure a smooth riding experience. The powerful Bosch motor and the 600 WH battery give you plenty of boost, whether you're dashing to the store or on long weekend tours. Fully equipped with lights, mudguards, and a luggage rack, it is ideal for commuters and city explorers.

Equipment:

Lighting
Light (front): Herrmans, MR5
Light (rear): AXA, Juno E-Bike

Brake System
Front brake mount: Post Mount
Rear brake mount: Post Mount
Brake (front): Shimano, Hydraulic disc brake, BR-MT420, 203 mm
Brake (rear): Shimano, Hydraulic disc brake, BR-MT420, 203 mm
Brake lever: Shimano, BL-M4100
Brake disc: Shimano, SM-RT64 203 mm, Centerlock

Electrical Parts
Battery capacity: 600 Wh
Battery location: Powertube
Motor torque: 85 Nm
Motor position: Center
Number of support levels: 0
Battery: Bosch, InTube 600 Wh
Charger: Bosch, Charger 4A

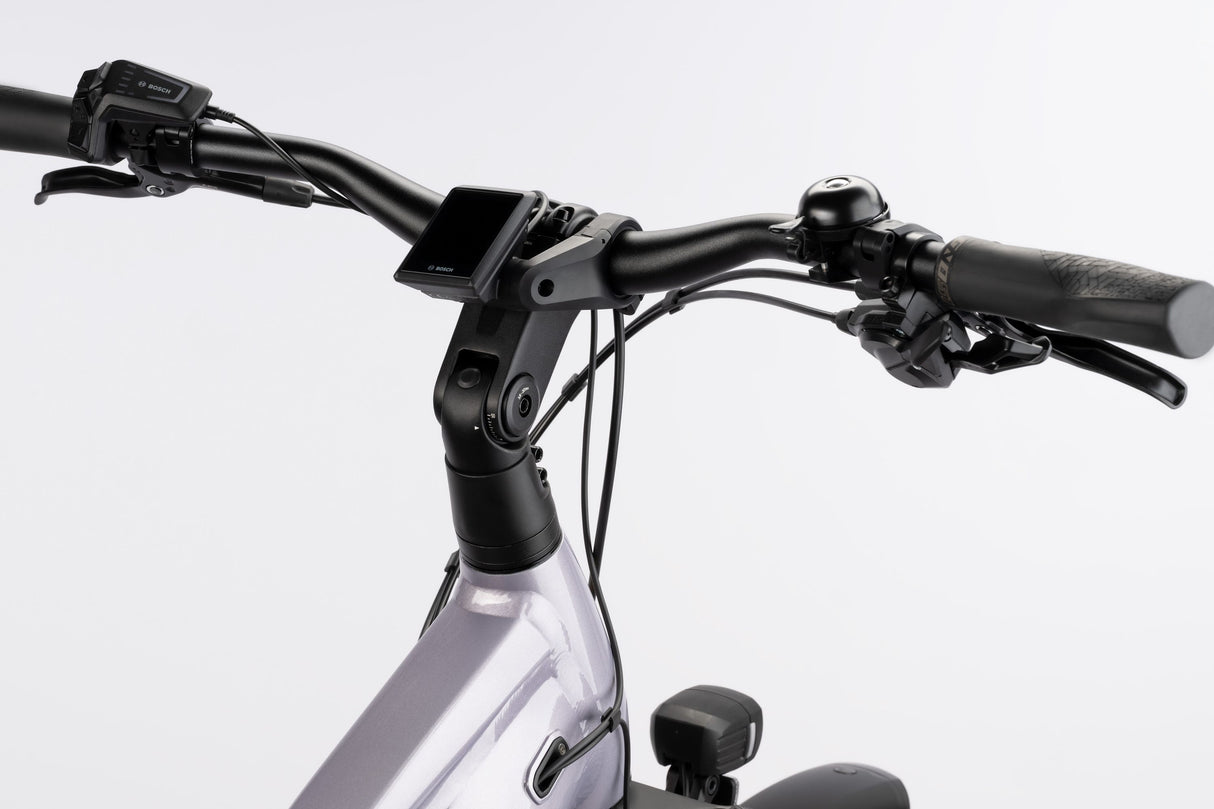

Display: Bosch, Kiox 300 + LED Remote
Motor: Bosch, Performance Line CX

Geometry
Bottom bracket drop: 60 mm
Chainstay length: 465 mm
Total fork length: 0 mm
Head tube angle: 68°
Head tube length: 140 mm, 155 mm, 170 mm
Reach: 422 mm, 432 mm, 443 mm, 462 mm
Stack: 656 mm, 670 mm, 684 mm
Standover height: 750 mm, 758 mm, 755 mm
Seat tube angle: 74°
Seat tube length: 400 mm, 450 mm, 500 mm, 550 mm
Top tube length: 610 mm, 620 mm, 635 mm, 658 mm
Wheelbase: 1171 mm, 1181 mm, 1198 mm, 1223 mm

Luggage Rack
Max. load luggage rack rear: 25 kg
Luggage rack (rear): Ghost, Carrier

Handlebars and Saddle
Handlebar diameter: 31.8 mm
Handlebar material: Aluminum
Handlebar height: 25 mm
Handlebar width: 720 mm
Seat post material: Aluminum
Stem length: 80 mm
Grip: XLC, MTB Grip
Handlebar: Ghost, Flat bar, Ergoriser, oversize, Dia. 31.8 mm, Rise: 25 mm
Headset: Feimin, FP-H856U / Acros Blocklock
Saddle: Selle Royal, Essenza Athletic
Seat post: Ghost, Non Suspension, MTB Dia. 34.9 mm, L: 400 mm
Stem: Ghost, Dia. 31.8 mm, L: 80 mm, adjustable

Frame and More
Frame size: S, M, L, XL
Max. allowable weight: 150 kg
Fork type: Suspension
Kickstand mount type: KSA18
Travel (front): 100 mm
Fork: Suntour, XCM34 BOOST 100 mm
Frame: E-TERU AL, Aluminum, Uni
Stand: Ursus, Mooi + Anti-Noise, adjustable

Wheels and Components
Wheel Size: 27.5"
Hub (front): Shimano, HB-TC500-15-B 15x110 mm
Hub (rear): Shimano, FH-TC500-HM-B 12x148 mm
Mudguard (front): Curana, Apollo 70
Mudguard (rear): Curana, Apollo 70
Rim Description: Schürmann, Craft Disc 30 32H
Rim (rear): Schürmann, Craft Disc 30 32H
Spokes: Sapim, Type GIO 14 L: 290 mm, Dia. 2.0 mm
Tires: Schwalbe, Johnny Watts, 60-584
Tire (rear): Schwalbe, Johnny Watts

Gears
Number of Teeth Cassette: 11-48T
Crankset Teeth: 38T
Crankset Type: Single
Number of Gears: 10
Pedal Included: Yes
Sprocket: Shimano, CUES CS-LG300-10, HG
Chain: Shimano, CN-LG500
Crankset: Miranda, Crius, RF ISIS XLC Logo
Derailleur Hanger: Sram, UDH
Rear Derailleur: Shimano, CUES RD-U6000 10-speed
Shift Lever (right): Shimano, Trigger, CUES SL-U6000
Pedal: VP, VPE-527

* Specification may vary in details in exceptional cases, depending on the manufacturer.
