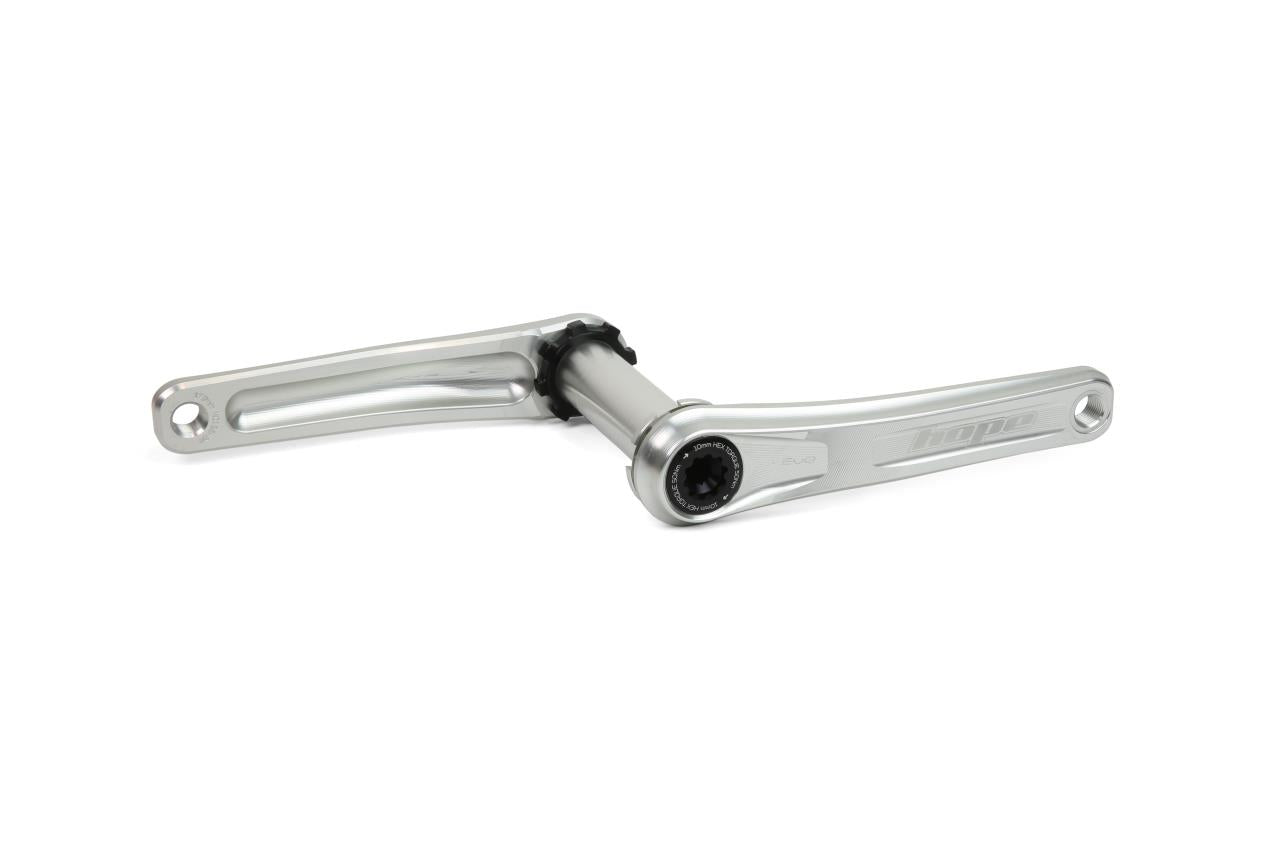

Hope EVO crankset without spider 68/73 mm - Silver

The continuous development of our popular crankset has led to the EVO Edition, a benchmark for MTB cranks made of aluminum. The latest FEA analysis tools, rigorous laboratory tests, and extensive practical tests mean that the EVO crankset is both lighter and stiffer than the previous model. It now features a self-extracting axle/arm interface that simplifies installation and removal. And all of this is proudly developed, tested, and manufactured in Barnoldswick, UK.

For the year 2019, Hope has devised a new innovative concept for their cranks. Through extended analysis and improvements, the crank has significantly improved in terms of material stiffness and weight.

It is also possible to remove the crank without any tools, allowing for a quick change.



Features:

• Material: 7075 Aluminum
• Crank arm lengths: 135 mm, 155 mm, 165 mm, 170 mm, 175 mm
• Chainline: 49 or 52 mm for 1x
• Spindle diameter: 30 mm
• Axle length: 133.5 mm
• Q-factor: 167 mm
• Recommended applications: XC, Trail/AM, Enduro (up to 110 kg), DH (up to 90 kg)
• Weight: 560 g (measured with the 170 mm length)
• Made in England, Barnoldswick



Note: The cranksets come in all lengths without a chainring.
