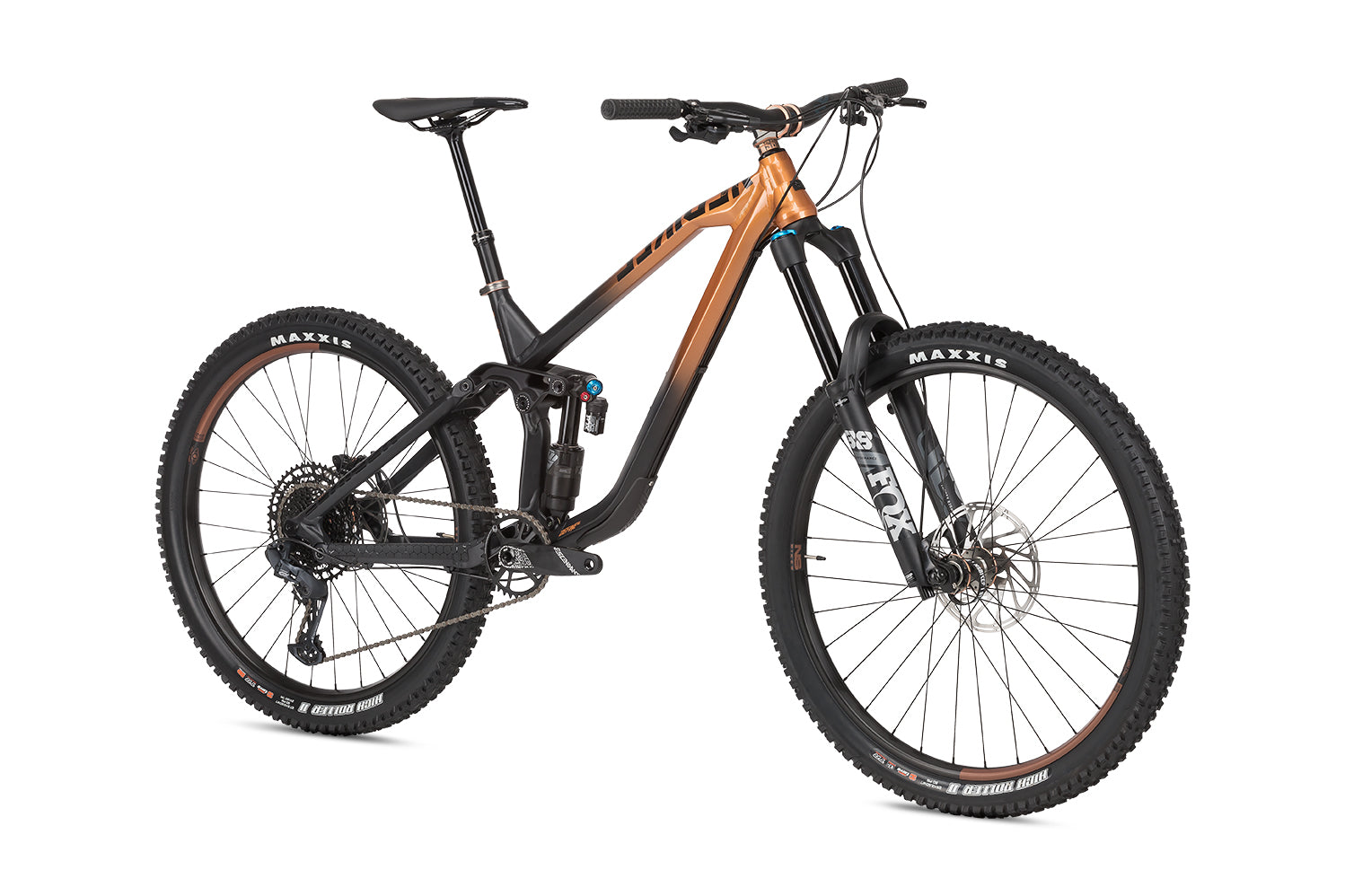

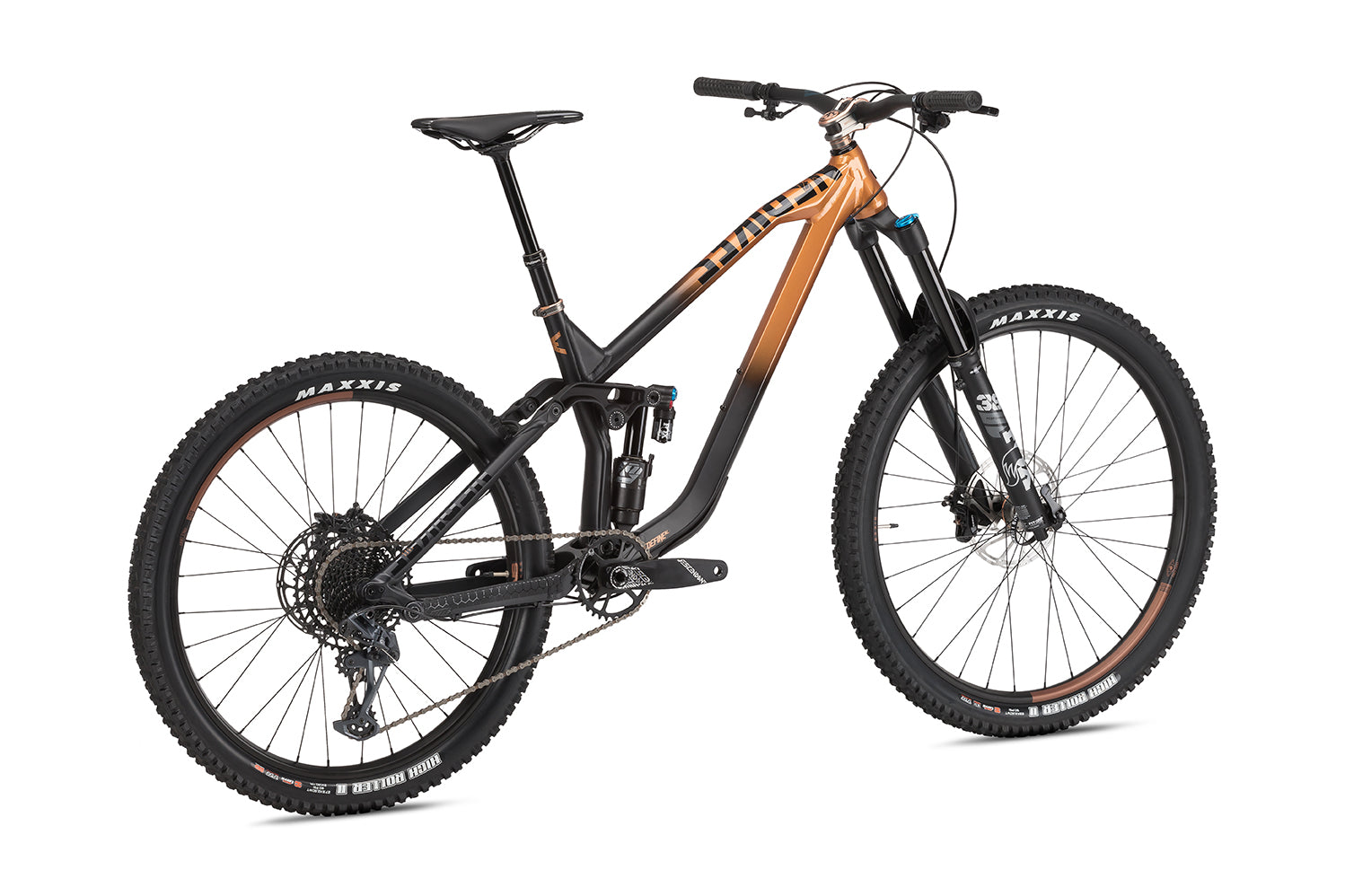

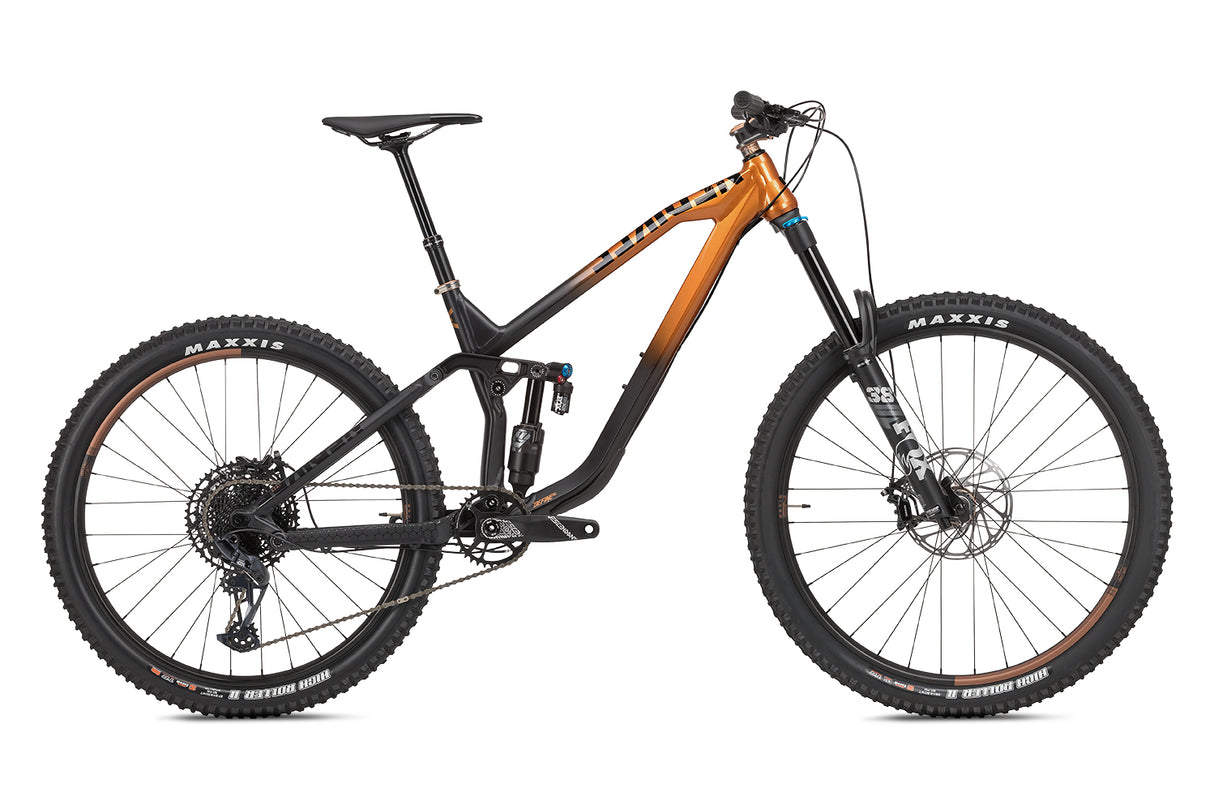

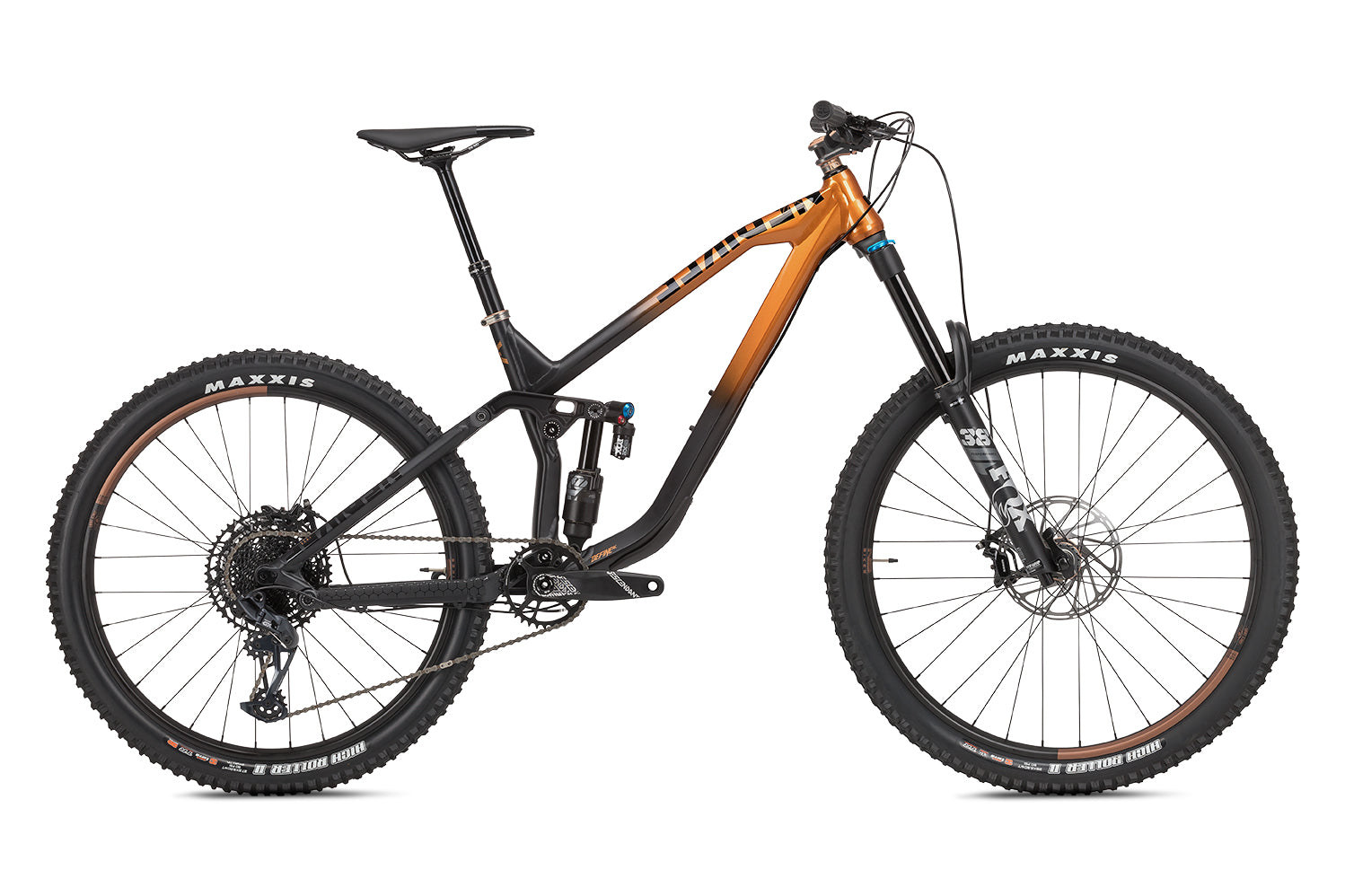

NS Bikes Define AL 170 1 - black/orange

This is the largest bike in the Define series. It is essentially a downhill bike that you can also ride uphill. Different wheel sizes are the best solution for a bike like this, and after many tests and gathering opinions, we decided to implement a solution that we firmly believe makes sense for many riders. A large, fast-rolling 29-inch front wheel plows through rough terrain, while the smaller 27.5-inch rear wheel remains compact and allows for more suspension travel without touching the frame or body parts. Let's not forget that this is still a Define – which means it is based on a beautifully crafted aluminum frame with specially hydroformed tubes, hidden external cable routing, large bearings, and radical geometry!

Equipment:
Frame: NS Bikes Define AL with 170 mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes
Fork: Fox Performance 38 Float Grip 180 mm travel, 3-position micro-adjustment lever 15 x 110 mm Boost, 1.5 tapered steerer tube, 44 mm offset
Shock: Fox Performance Float X2 2 Pos lever with LSC, LSR 225x70
Shifter: Sram NX Eagle, 12-speed
Rear Derailleur: Sram GX Eagle Lunar, 12-speed
Cassette: Sram PG-1210, 11-50 teeth, 12-speed
Chain: Sram SX Eagle, 12-speed
Front Brake: Sram Guide RE, 200mm
Rear Brake: Sram Guide RE, 200mm
Crank: Truvativ Descendant 6K DUB 170mm 34t
Seatpost: Race Face Aeffect R S-125, M-150, L-170mm, 31.6mm
Saddle: WTB Volt Medium Cromoly
Handlebar: NS Bikes 35, 800 mm, 20 mm rise
Stem: NS Bikes Quantum Lite 45mm, 35 mm
Front Hub: NS Rotary 15 Boost 15x110 disc (sealed bearings)
Rear Hub: NS Rotary Cassette 148x12mm Boost (sealed bearings)
Rims: Octane One Solar 29" front, Octane One Solar 27.5" rear, 32h, Tubeless Ready
Tires front/rear: Maxxis High Roller II 29x2.50 WT TR EXO / Maxxis High Roller II 27.5x2.40 TR DH
Bottom Bracket: Sram DUB BSA 73mm
Headset: GW integrated tapered IS42/IS52, sealed bearings
Grips: NS Bikes Hold Fast supersoft
Spokes: Spokes with 14mm nipples
Weight (kg): 15.50 kg (Size M, Tubeless setup)

* Specification may vary in details in exceptional cases, depending on the manufacturer.
