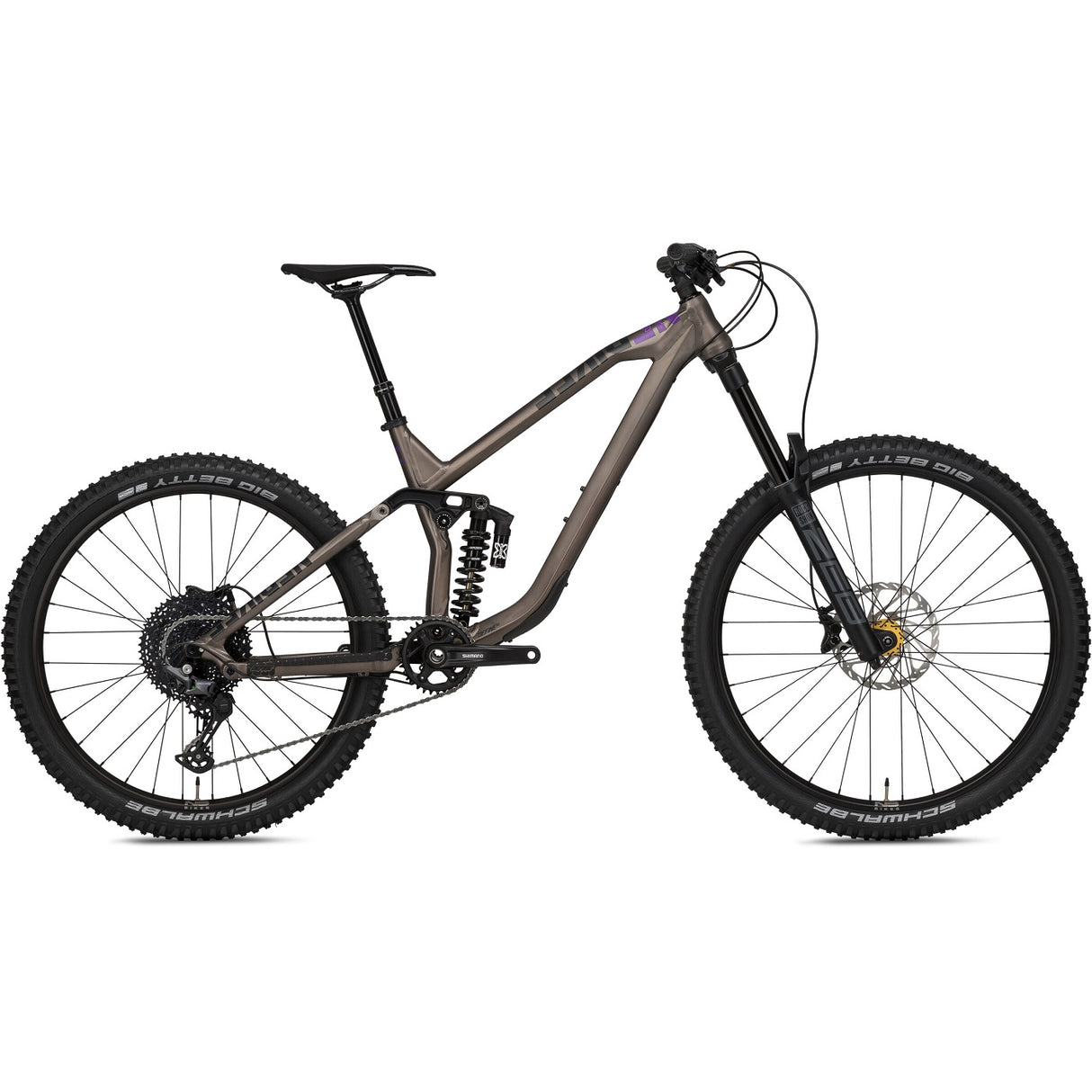

NS Bikes Define AL 170/2 29''/650B (mix) Enduro/AM - raw

The Define AL 170 2 is the absolutely bike park-capable enduro machine as a mullet with 29" front and 27.5" rear tires and a brand new aluminum frame with semi-integrated cable routing. With a full 170mm of rear travel and a massive 180mm fork up front, the Define AL 170 2 can easily roll over all bumps on trails and downhill tracks at any speed.
The largest bike of the Define models sees itself as a crossover between enduro and downhill and combines the advantages of both disciplines. Compared to last year, the more affordable version of the Define AL 170 has been equipped with a new Marzocchi shock and a KS Rage-I dropper post.


Equipment:
Frame: NS Bikes Define AL, 170mm travel, AL6061-T6 + AL6066-T6
Fork: Rock Shox ZEB, 180mm travel
Shock: Marzocchi Bomber CR Trunnion, 400 (S), 450 (M), 500 (L) lbs/in
Drivetrain: Shimano Deore M6100, 1x12
Shifter: Shimano Deore M6100, 1x12
Cassette: Sunrace CSMZ800, 11-51T, 1x12
Front Brake: Shimano MT410, 200mm
Rear Brake: Shimano MT410, 200mm
Crank: Shimano Deore FC-MT5101 170mm, 34T
Seatpost: Kind Shock rage i internal 125mm (S), 150mm (M), 170mm (L), 31.6mm
Saddle: WTB Volt Medium Steel SL
Handlebar: NS Bikes 35, 800mm, 20mm rise
Stem: NS Bikes Tone 35, 45mm
Front Hub: NS Bikes 110x15mm Boost (sealed bearings)
Rear Hub: NS Bikes 148x12mm Boost (sealed bearings)
Rims: Octane One Solar 29" / 27.5", 32h, tubeless ready
Tires front/rear: Schwalbe Big Betty BikePark 29x2.4" / 27.5x2.4"
Bottom Bracket: Shimano BSA 73mm
Headset: GW integrated tapered IS42/IS52, sealed bearings
Grips: NS Bikes Hold Fast supersoft
Spokes: Spokes 14mm nipples
Chain: Shimano Deore M6100, 1x12
Weight (kg): approx. 17.1 kg *Size M, tubeless

* Specification may vary in details in exceptional cases, depending on the manufacturer.
