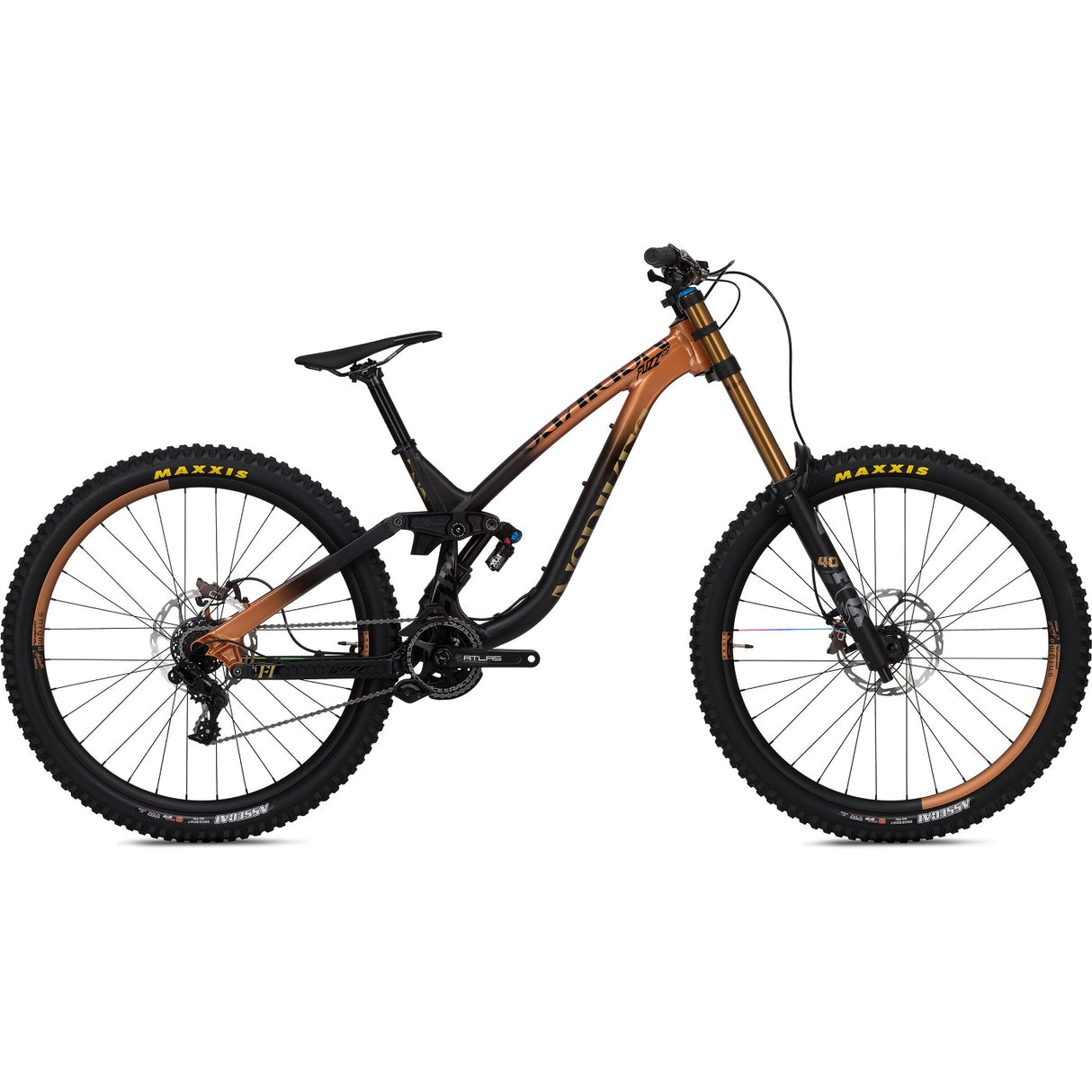

NS Bikes Fuzz 29 1 DH - Black Copper

Fuzz 29 1 DH - the World Cup-tested top model of the downhill bike from NS-Bikes. The Fuzz 1 is equipped with the powerful Fox Factory 40 Float suspension fork and Fox Performance Float X2 shock. The reliable 7-speed SRAM GX DH drivetrain and sharp Hayes Dominion brakes make the bike the first choice for anyone hunting for seconds.

Equipment:
Frame: NS Bikes Fuzz 29, 190mm travel, AL6061-T6 + AL6066-T6, adjustable reach
Fork: Fox Factory 40 FLOAT, 200mm travel
Shock: Fox Performance Float X2 Trunnion
Drivetrain: SRAM GX DH X-Horizon 1x7
Shifter: SRAM GX DH, 1x7
Cassette: SRAM PG-720 DH, 11-25T, 1x7
Front Brake: Hayes Dominion A4, 200mm
Rear Brake: Hayes Dominion A4, 200mm
Crank: Race Face Atlas 165mm, 36T
Seatpost: Kalloy, 30.9mm
Saddle: WTB Volt Medium Cromoly
Handlebar: NS Bikes Licence 31.8, 820mm, 38mm rise
Stem: NS Bikes Direct Mount 31.8 (40-48mm / 2 positions)
Front Hub: NS Bikes Rotary 20 Boost 20x110 (sealed bearings)
Rear Hub: NS Bikes Rotary Cassette 157x12mm (sealed bearings)
Rims: NS Bikes Enigma Rock 29", 32h, tubeless ready
Tires Front/Rear: Maxxis Assegai MaxxGrip 3C DH TR 29.5x2.50”
Bottom Bracket: Race Face BSA 83mm
Headset: NS Bikes custom 1.5" EX56/56, sealed bearings, reach adjustable offset cups (+/- 16mm)
Grips: NS Bikes Hold Fast supersoft
Spokes: Spokes 14mm nipples
Chain: SRAM PC-1110, 1x7
Chain Guide: Mozartt Presto Alu with bashguard
Weight (kg): approx. 16.7 kg *Size M, tubeless

* Specification may vary in details in exceptional cases, depending on the manufacturer.
