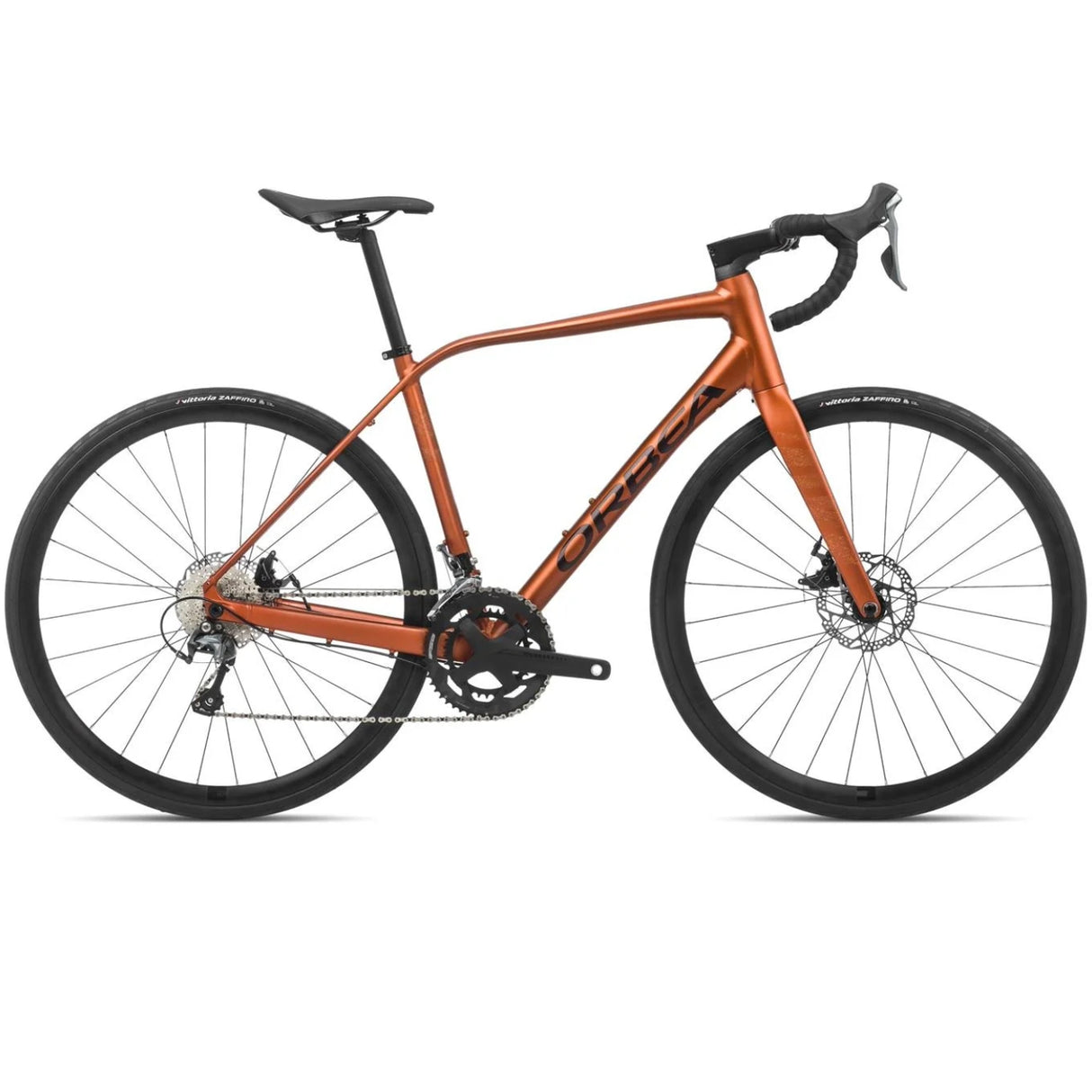

Orbea AVANT H40 Orange Candy (Matt) - Cosmic Bronze (Gloss)

RIDING WITHIN REACH

Grab your Avant, fill your bottles, and head out on a new tour. No other machine offers you as much fun on the road. Speed, freedom, and views that are unique to quiet country roads come with every Avant. And we know that's exactly what excites you.

ICR PLUS

Whether mechanical or electronic shifting: all cables, wires, and lines run invisibly under the stem through the head tube into the frame. And all this without additional friction or unpleasant rattling.

AVANT CARBON FORK

The design and shape of the Avant fork offer the best possible combination of elasticity, tire clearance, and stiffness. The fork features integrated fender mounts and large tire clearance for more flexibility.

Equipment:
Frame: Orbea Avant Hydro disc, hydroformed triple butted aluminum, HS 1.5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27.2mm, MMS system.
Fork: Orbea carbon 2021, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout
Crankset: FSA Omega Megaexo 34x50t
Rear Derailleur: Shimano Tiagra 4700 GS
Front Derailleur: Shimano Tiagra 4700
Shift Levers: Shimano Tiagra ST-4700
Cassette: Sun Race CSMS1 11-34t 10-Speed
Chain: KMC X10
Brakes: Jagwire RideRever Mechanical Disc
Wheels: Alloy, Tubeless, 700c, 19c, 28H
Rear Hub: Orbea Thru Axle 12x142mm M12x2 P1 Solid
Front Hub: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Tires: Vittoria Zafiro V Rigid bead 700x28c
Headset: Acros Alloy 1-1/2" Internal Cable Routing
Stem: OC Road Performance RP21, -6º
Handlebar: OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Seatpost: Alloy, 27.2mm, Setback 20
Saddle: Fizik Aliante R5
Bar End Plugs: Orbea Eva
