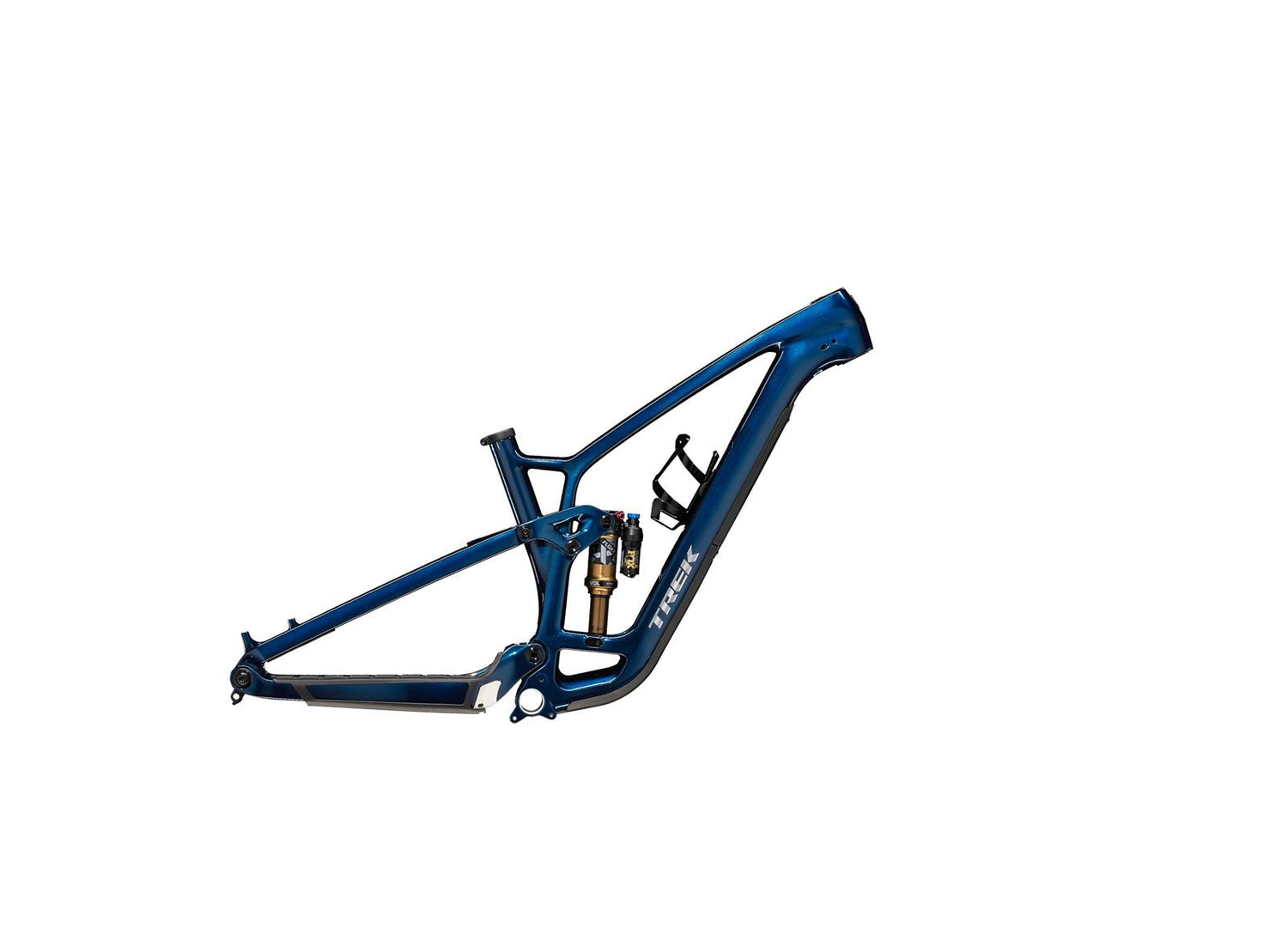

Trek Frame set Fuel EX Carbon F/S Mulsanne Blue

The Fuel EX C is a lightweight, trail-ready frameset that sets no limits to your build imagination. It is based on a lightweight, vibration-damping carbon frame that excels in high stiffness wherever the trail demands it. Its progressive trail geometry with longer reach and a slacker head angle provides more control on descents, while the steep seat angle guarantees higher pedaling efficiency.

Trek offers you a vibration-damping premium carbon frame that can take on any trail. The internal cable routing increases the protection of cables and lines and ensures a clean setup. The FOX Factory Float X rear shock quickly eliminates small bumps and smoothly handles brutal descents without complaint. The adjustable geometry allows for individual adjustment of the steering and seat angles.

1. Thanks to 150 mm front and 140 mm rear travel and a slack, adjustable geometry, the Fuel EX Gen 6 is an extremely capable and highly off-road capable bike that features an integrated storage compartment in the frame on all models, including the aluminum models.
2. Its modern geometry is ready for both steep descents and punchy climbs.
3. Thanks to the adjustable headset (angled headset cups are available separately) and Mino Link, six different geometry configurations are possible.
4. The internal storage compartment in the frame holds your tools and (almost) everything you need for the trail.
5. The higher-quality FOX Factory shock responds smoothly and ensures high pedaling efficiency.

• Frame: OCLV Mountain Carbon, integrated storage compartment, adjustable headset angle, geometry adjustable via Mino Link, adjustable progression, guided internal cable routing, magnesium rocker link, 34.9 mm seat tube diameter, ISCG 05, 55 mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
• Shock: FOX Performance Float X, 2-position damping, 185 x 55 mm
• Max. compatible fork travel: 160mm
• Rear quick release: Bontrager Switch thru axle, removable lever
• Max. tire size: Frame: 29 x 2.5 (XS & S: 27.5 x 2.5) Fork: see manufacturer
• Max. chainring size: Max.: 34 teeth (oval – 32 teeth) Min.: 28 T.
• Headset: Integrated compact bearings, 1 1/8" top, 1.5" bottom, compatible with angled cups
• Brake disc diameter: Max. brake disc diameter - Frame: 203mm, Fork: see fork manufacturer
• Bag: Bontrager BITS Integrated Frame Bag
• Weight: M – 3.40 kg
• Max. weight: This bike has a maximum weight limit (bike, rider, and cargo) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise noted
