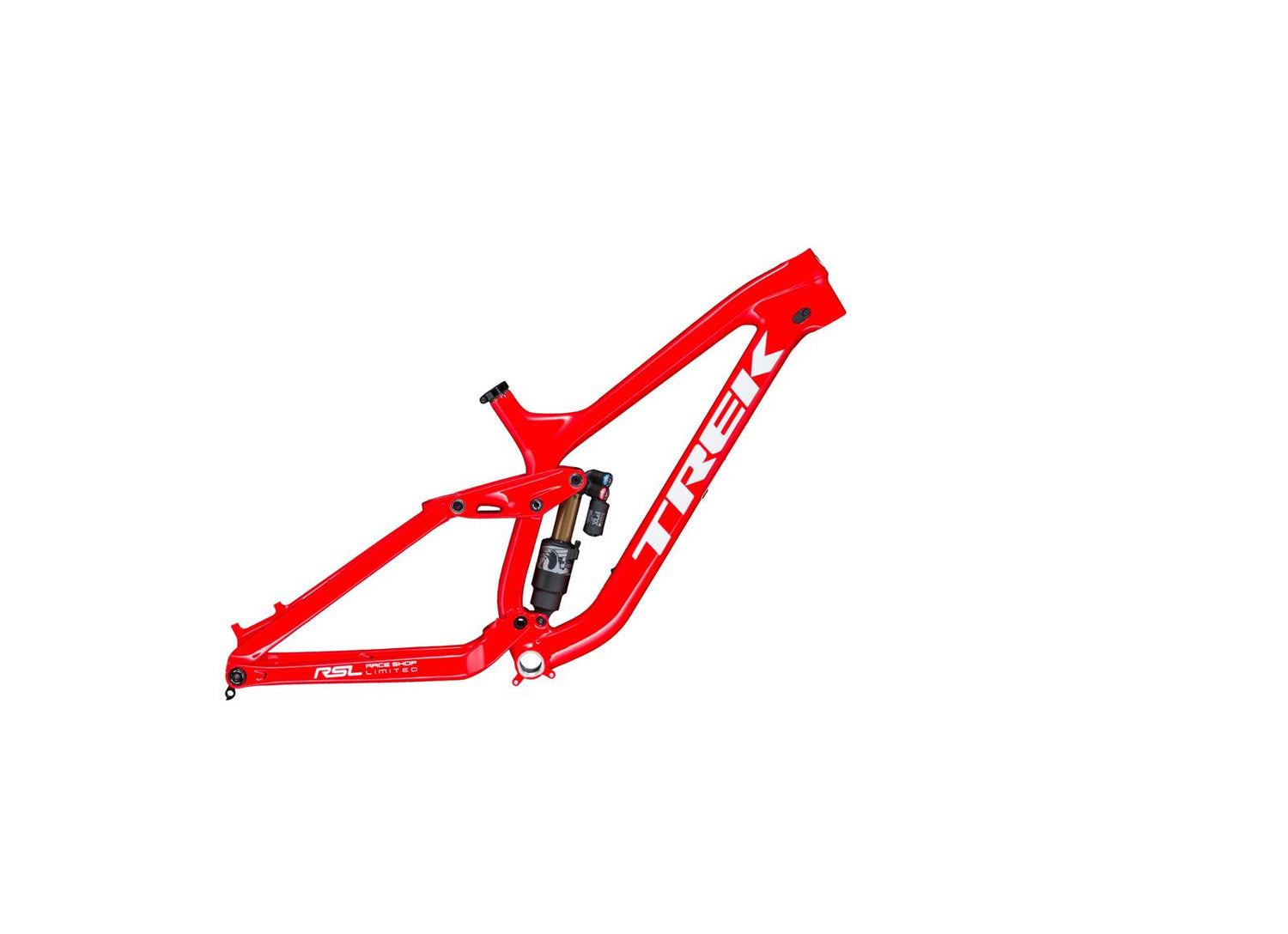

Trek Frame set Session Carbon F/S Viper Red

The Session C 27.5 frame set is an agile, carbon-made DH mountain bike for absolute dominance on the most brutal descents. The simultaneously strong and lightweight tubes made from OCLV Mountain Carbon, the FOX Factory shock with 190 mm travel, and the best available frame technology make it the perfect platform for high-speed downhills.

Trek offers you a strong and lightweight frame made from OCLV Mountain Carbon, an adjustable FOX Factory Float X2 shock tuned by the Trek Suspension Lab with 190 mm travel, Carbon Armor frame protection, an FSA Orbit headset with adjustable headset angle, and exclusive trail technology like ABP and Mino Link. The frame set is built for 27.5" wheels.

1. The Session has the heart of a monster truck: It rolls over everything, gives you massive confidence on rough trails, and saves your behind if you ever miss the right line
2. OCLV Mountain Carbon is light and stable and has no problem with the roughest runs
3. Race or go wild? This bike makes both possible
4. 27.5-inch wheels enable hair-raising maneuvers on the most technical trails
5. Mino Link and the adjustable headset angle allow for geometry adjustments for precise handling

• Frame: Main frame and stays made from OCLV Mountain Carbon, tapered head tube, integrated frame protection, internal Control Freak cable routing, magnesium rocker link, Mino Link, ISCG mount, ABP, 12 x 157 mm thru axle, 190 mm travel
• Shock: Fox Factory Float X2, adjustable high and low-speed rebound, adjustable high and low-speed compression, tuned by the Trek Suspension Lab, 225 x 75 mm
• Max. compatible fork travel: 200mm
• Max. tire size: 27.5 x 2.40"
• Max. chainring size: 1x: 36 teeth

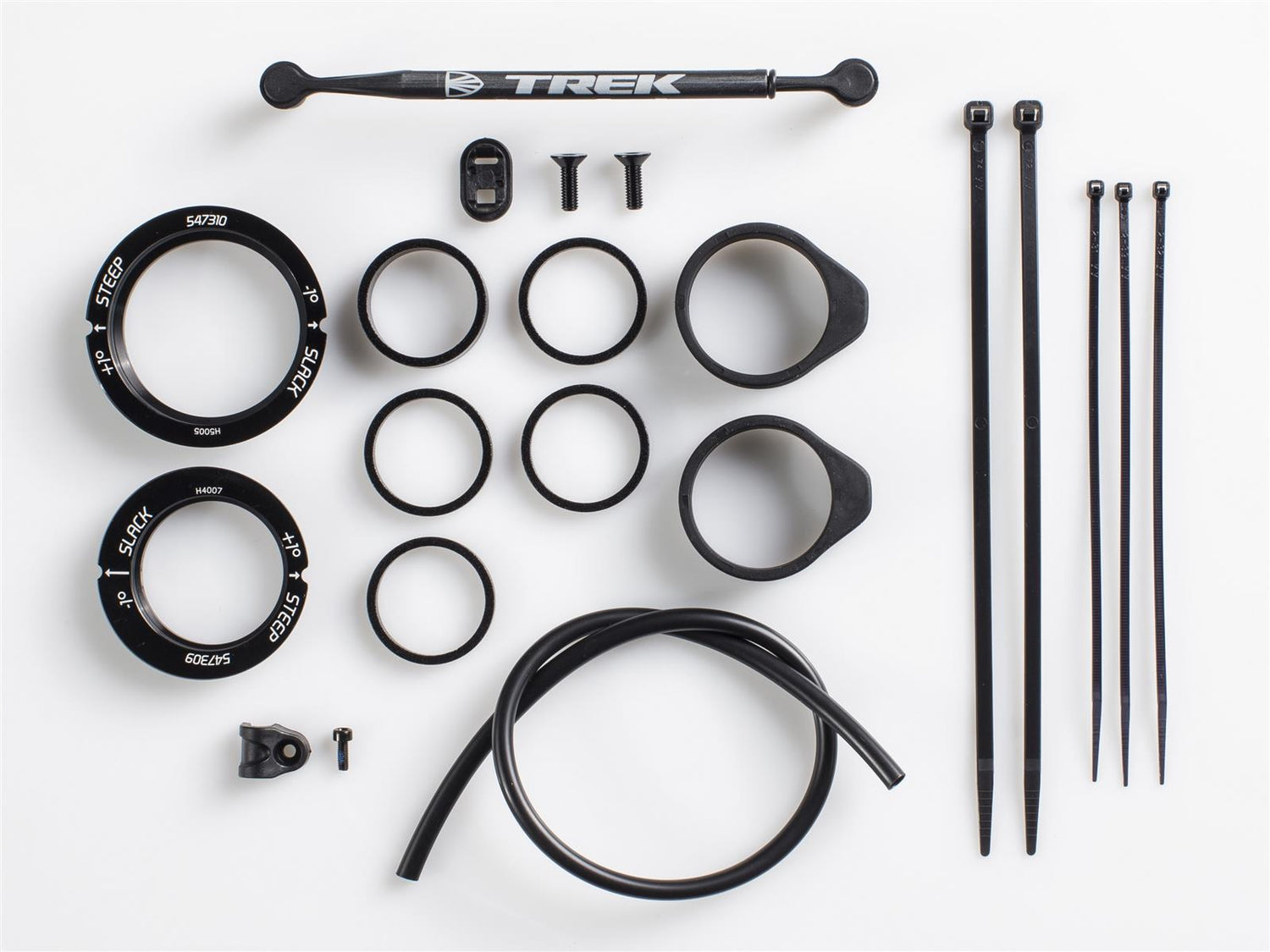

• Headset: FSA Orbit, sealed cartridge bearing, 1 1/8" top, 1.5" bottom (including angled cups for geometry adjustment)
• Weight: M – 3.27 kg
• Max. weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise noted
