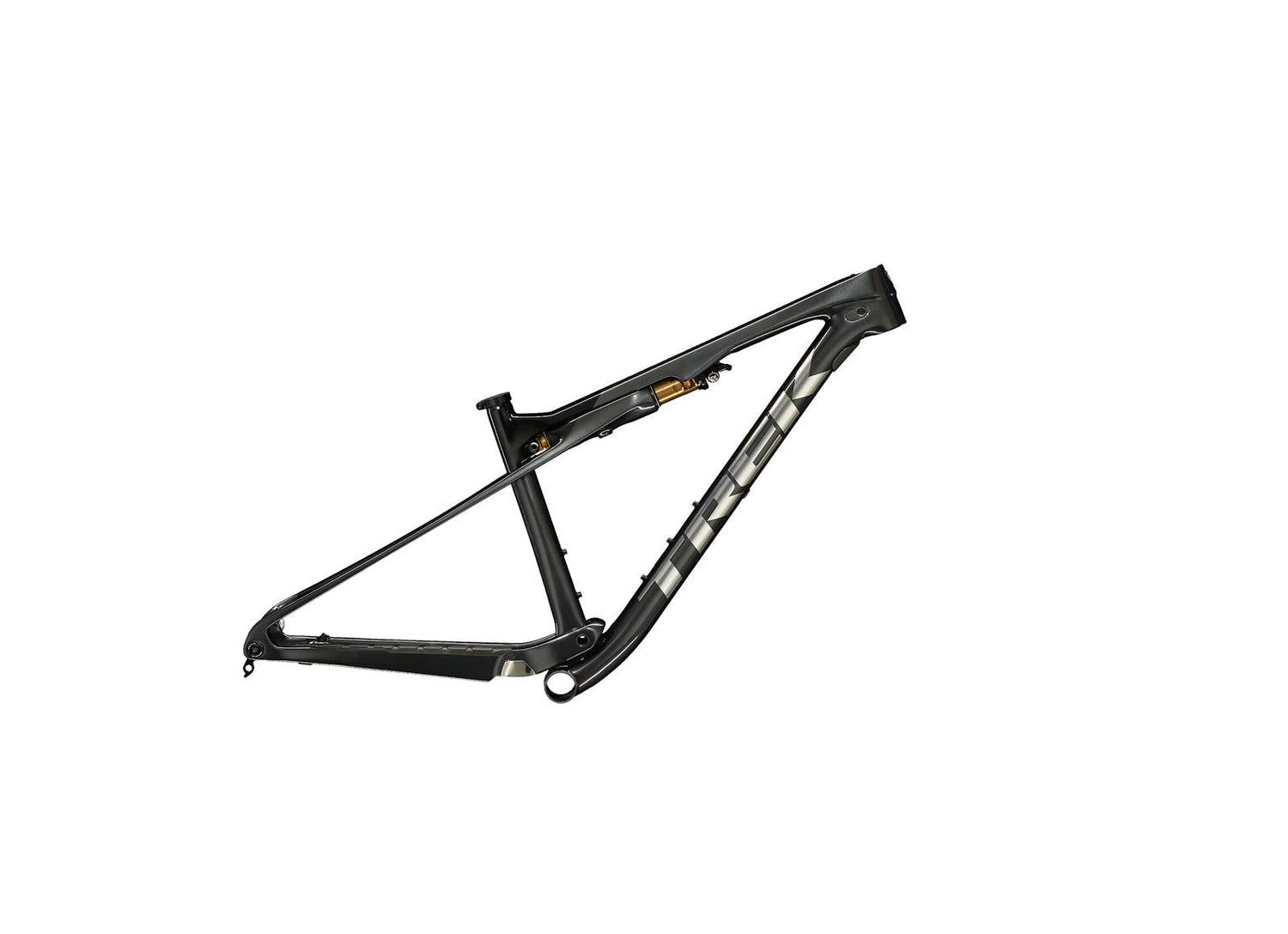

Trek Frame set Supercaliber F/S Lithium Grey/Trek Black

The Supercaliber frame set combines our ultra-light yet stable OCLV Mountain Carbon with our exclusive integrated IsoStrut damper, enabling the creation of an insanely fast and exceptionally capable XC racing machine. Pair it with a 100mm suspension fork and your favorite components, and you have a top-class bike that dominates even the toughest race tracks.

• The Supercaliber is a World Cup-level bike: It is fast, built for technically demanding terrain, and almost as light as a hardtail.
• Our exclusive IsoStrut damper forms the basis of the finely tunable, damped suspension system that guarantees a smooth ride and ensures efficient propulsion.
• Jointless seat stays save weight and contribute with their flexibility to absorbing bumps on the trail.

• Frame: Main frame and stays made of OCLV Mountain Carbon, IsoStrut, tapered head tube, Knock Block, internal Control Freak cable routing, Boost148, 60mm travel
• Damper: Trek IsoStrut, FOX Factory damper, air spring, DPS damping with 2 positions, remote lockout, Kashima coating, 235 x 32.5 mm
• Suspension lever: FOX Dual-Lockout lever with 2 positions
• Max. compatible fork travel: 120mm (531mm axle to crown)
• HR quick release: Bontrager Switch thru axle, removable lever
• Max. tire size: Frame: 29 x 2.20", Fork: See manufacturer
• Max. chainring size: 1x: 36 teeth
• Headset: Integrated headset with Knock Block, 62-degree radius, cartridge bearings, 1 1/8" top, 1.5" bottom
• Brake disc diameter: Max. brake disc diameter - Frame: 160mm
• Weight: M - 2.15 kg / 4.74 lbs
• Max. weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

*Please note - the specification applies to all sizes unless otherwise noted
