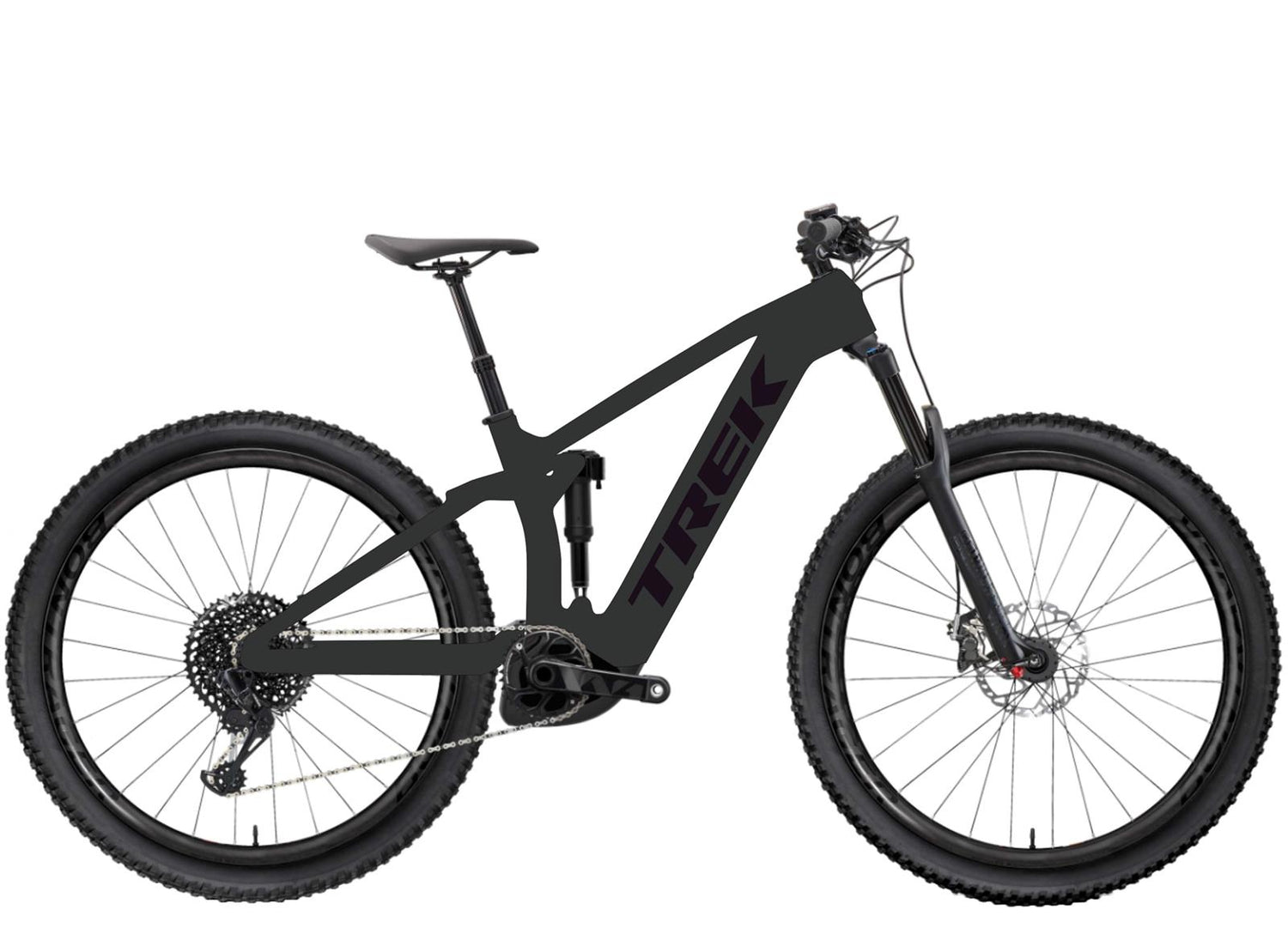

Trek Rail 9.5 Gen 4 Black Olive

The Rail 9.5 is an e-mountain bike with a carbon frame and plenty of suspension travel. It features an optimized frame with a longer reach for excellent stability on the trail and equipment that can handle the toughest enduro rounds. The powerful Bosch Smart System motor gets you back up the mountain faster than you ever thought possible. And the battery with a massive 750 Wh lets you ride almost endlessly.

Equipment:

Frame: Main frame made of OCLV Mountain Carbon, 1.8" lower top tube, integrated control module display, removable integrated battery (RIB), Knock Block 2.0, internal cable routing, 34.9 mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Controller: Bosch LED Remote, Smart System
Motor: Bosch Performance Line CX, Smart System, magnesium motor housing, 85 Nm, 32 km/h max. support speed (25 km/h max. support speed in EU and APAC)
Battery: Bosch PowerTube 750 Wh, Smart System
Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damping, lockout, tapered steerer, 44 mm offset, oversized fork crown for e-MTB, Boost110, 15 mm Maxle Stealth axle, 160 mm travel
Shock: RockShox Deluxe Select+ RT, 230 x 57.5 mm
Max. compatible fork travel: 170 mm (580 mm axle to crown)
Front Hub: Bontrager, sealed bearing, aluminum axle, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear Hub: Bontrager, aluminum, sealed bearing, aluminum axle, 6-bolt disc mount, 8/9/10 freehub from Shimano, Boost148, 12 mm thru axle
Rear Quick Release: Bontrager Switch thru axle, removable lever
Rim: Alex MD35, tubeless ready, 32-hole, 35 mm internal width, Presta valve
Tire: Bontrager XR4 Comp, wire bead, 30 TPI, 29 x 2.60
Max. tire size frame: 29 x 2.60
Shifter: Shimano Deore M6100, 12-speed
Rear Derailleur: Shimano Deore M6100, long cage
Crank: E*thirteen E*spec Plus, 34 T, 165 mm crank arm length
Cassette: SunRace CSMZ800 11-51, 12 speed
Chain: Shimano Deore M6100
Max. chainring size: 34 teeth
Saddle: Bontrager Arvada, steel rails, 138 mm width
Seatpost: TranzX JD-YSI-22PLQ, 100 mm travel, internal cable routing, 34.9 mm, 346 mm length (S)
Seatpost: TranzX JD-YSI-22PLQ, 150 mm travel, internal cable routing, 34.9 mm, 454 mm length (M)
Seatpost: TranzX JD-YSI-22PLQ, 170 mm travel, internal cable routing, 34.9 mm, 497 mm length (L/XL)
Handlebar: Bontrager aluminum, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Rhythm Comp, Knock Block, 31.8 mm, 0 degree, 50 mm length
Brake: Hydraulic 4-piston disc brake Tektro HD-M745
Brake Rotor: Tektro, 6-bolt, 203 mm
Max. rear brake rotor diameter: 203 mm
Weight: M - 25.35 kg / 55.89 lbs
Max. weight: This bicycle has a maximum weight restriction (bicycle, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
