Giant Reign E+ 3 V2 - Raw Aluminum
Reign E+ 3 V2 - Raw Aluminum - L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Do you have questions about the product?
Reign E+ 3 V2 - Raw Aluminum
Description
Description
Trail Technology
The proven Maestro suspension (160 mm) and the powerful yet compact SyncDrive Pro motor enhance your abilities on steep climbs and rough descents. The progressive geometry with a shorter rear end and longer reach allows for superior handling and agility on technical
Full Control
The RideControl Ergo 3 offers you an integrated, user-friendly button control that is easy to use. The GIANT e-bike app provides you with tuning options and e-bike-specific fitness tracking.
Long-lasting Power
Climb steep mountains and enjoy fast descents all day long with the new, integrated EnergyPak battery system in the down tube with a capacity of 800Wh.
Motor: SyncDrive Pro2, 85Nm, powered by Yamaha
Control Unit: RideControl GO + RideControl Ergo 3
Display Unit: SG Display compatible, ANT+ Display compatible
Battery: EnergyPak Smart 800 Wh EnergyPak Plus Range Extender compatible (not size S)
Charger: Giant EnergyPak 6A smart charger, 60% in 2:15h
Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Frame Sizes: S, M, L, XL
Color: Raw Aluminum

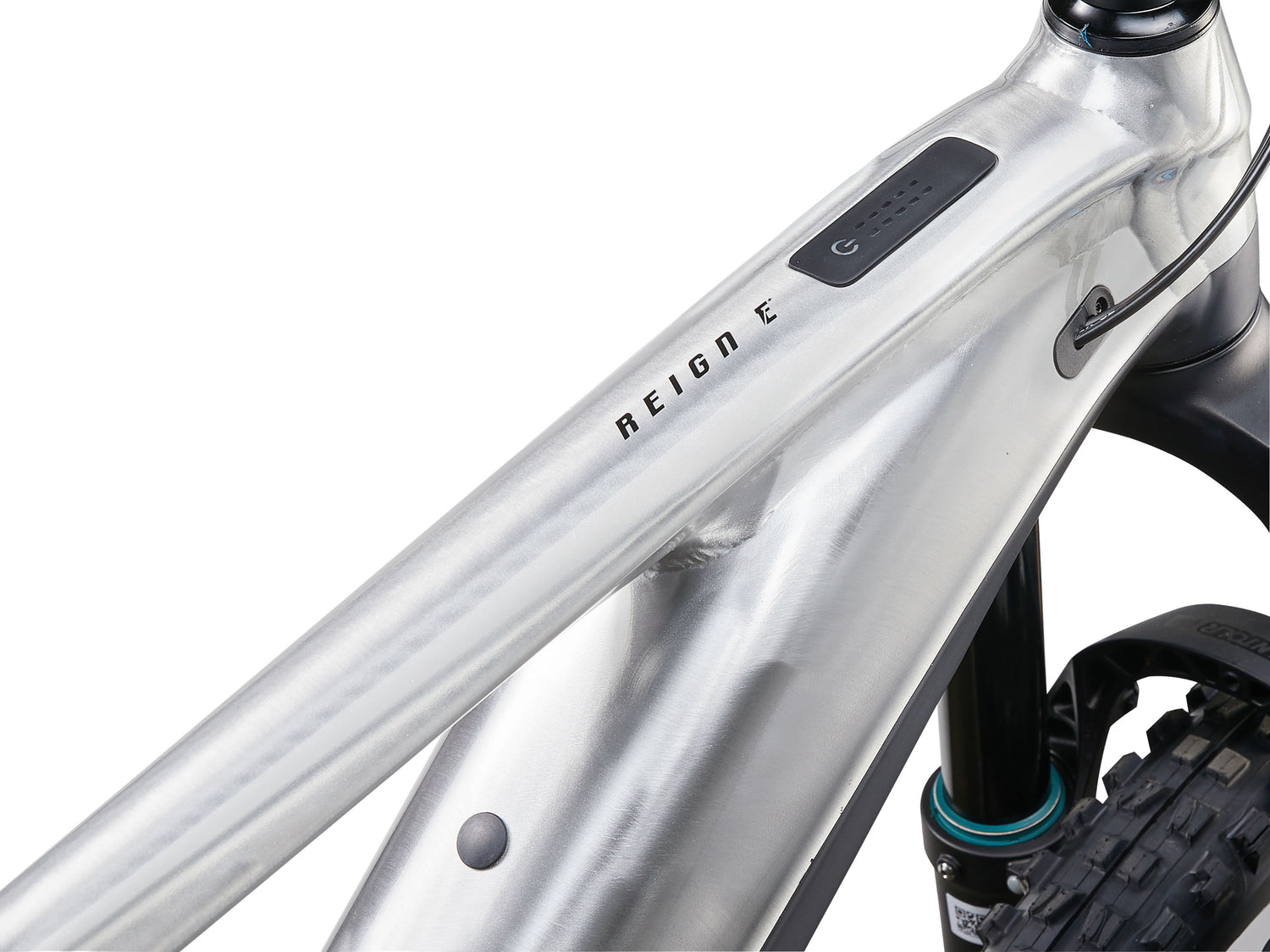

Frame: AluxX SL main frame, Maestro rear suspension with geometry flip-chip, carbon rocker arm, integrated speed sensor, EnergyPak Plus compatible (size S not compatible!), 160 mm travel, 12 x 148 mm, SRAM UDH derailleur hanger
Fork: SR Suntour Durolux 38, 170mm travel, Boost 15x110 mm
Shock: Fox Float DPS Performance, EVOL, 205x62.5mm Trunnion mount, custom tuned
Handlebar: GIANT Contact 35 Trail, 20mm rise
Grips: GIANT Tactal Pro single lock-on
Stem: GIANT Contact SL 35
Seatpost: GIANT Contact Switch Vario Post 30.9mm (S:125, M: 150, L/XL:170)
Saddle: GIANT Romero Trail
Pedals: Flat pedal
Shifter: Shimano Cues LinkGlide
Front Derailleur: MRP 1X HD2 chain guide
Rear Derailleur: Shimano Cues LinkGlide, 11-speed
Brakes: Shimano Deore BR-MT420 (4-piston), 203mm
Brake Levers: Shimano Deore, I-spec EV
Cassette: Shimano Cues LinkGlide CS-LG400-11, 11-50T
Chain: Shimano LinkGlide, CN-LG500
Crankset: Praxis e-HD, Praxis New Wave 36T chainring
Rims: GIANT AM 29"/27.5", Tubeless Ready, 30mm internal width
Hubs (f/r): Shimano MT410
Spokes: Sapim Race / Sapim E-Lite
Tires: Maxxis Minion DHF 29 x 2.6" foldable, Tubeless, EXO+, 3c MaxxTerra / Maxxis Assagai 27.5x2.5" WT foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound Delivery with tube
Accessories (partially installed): Tubeless Kit (liquid, valves, tire levers, valve core remover, instructions)
Lock: Torx 25 Battery Lock with built-in Torque limiter
Weight (kg): 26.3 (M) Tubeless
* Specification may vary in details in exceptional cases, depending on the manufacturer.
