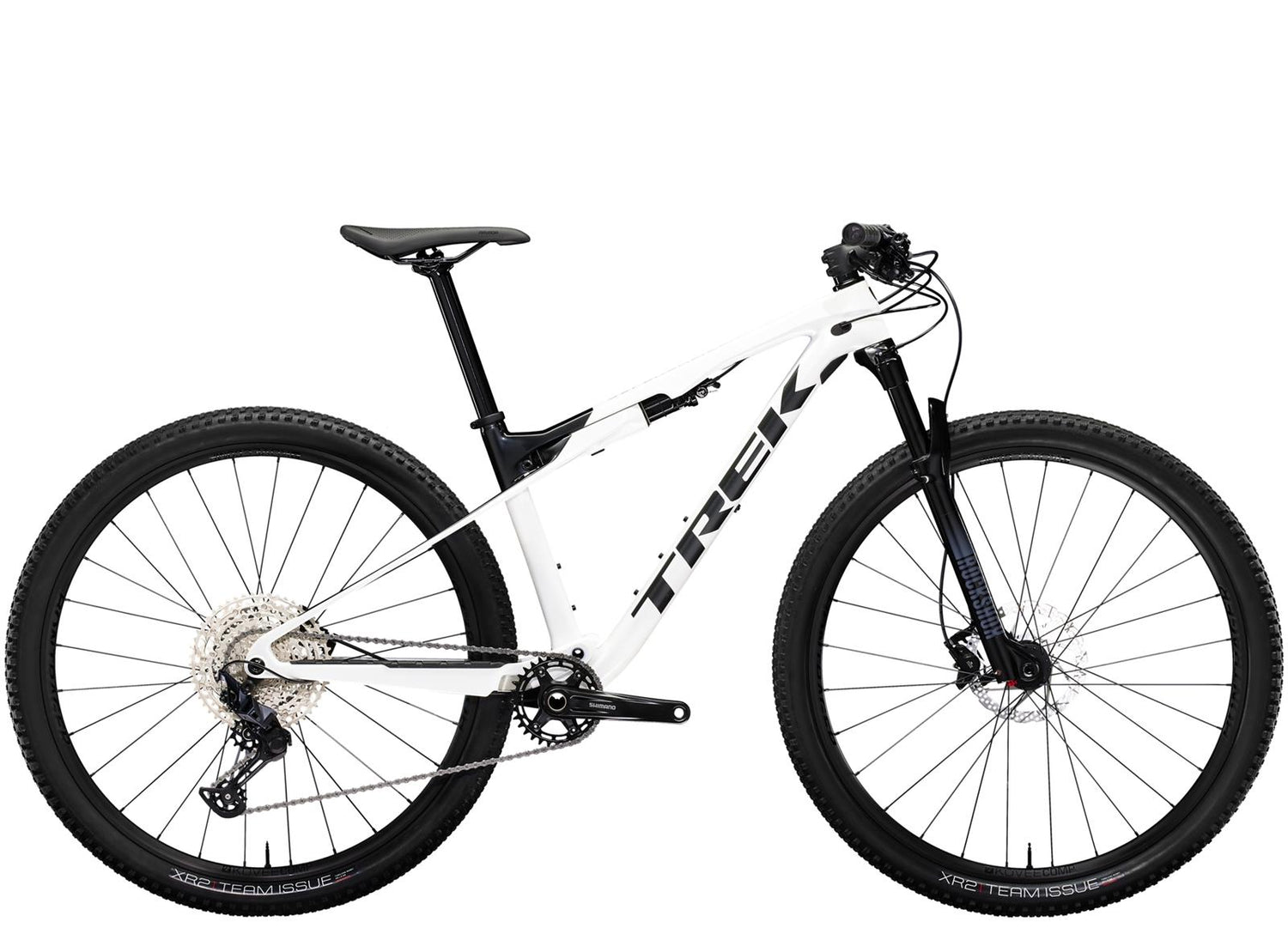

Trek Supercaliber 9.6 Crystal White

The Supercaliber 9.6 is a cross-country race bike made of carbon, designed for speed and top performance - from the efficient IsoStrut damper to the pivotless seat stays that save weight and smoothly absorb bumps on the trail. Save yourself the decision between hardtail and full suspension on race day.

Equipment:

Frame: Main frame and stays made of OCLV Mountain Carbon, IsoStrut, tapered head tube, Knock Block, internal Control Freak cable routing, Boost148, 60 mm travel
Fork: RockShox Recon Gold RL, DebonAir spring, Motion Control damping, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth axle, 100 mm travel
Shock: Trek IsoStrut, FOX Performance shock, air spring, DPS damping with 2 positions, remote lockout, 235x32.5 mm
Suspension lever FOX Dual-Lockout lever with 2 positions
Max. compatible fork travel: 120 mm (531 mm axle to crown)
Front hub: Bontrager, aluminum, sealed bearing, aluminum axle, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear hub: Bontrager, aluminum, sealed bearing, 6-bolt disc mount, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rear quick release: Bontrager Switch thru axle, removable lever
Rim: Bontrager Kovee Comp, double-wall rim, Tubeless Ready, 28-hole, 23 mm internal width, Presta valve
Tire: Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall protection, aramid bead, 120 TPI, 29 x 2.20
Rim tape: Bontrager TLR
Max. tire size frame: 29 x 2.20"
Shifter: Shimano Deore M6100, 12-speed
Rear derailleur: Shimano SLX M7100, long cage
Crank: Shimano MT511, steel chainring (32T), 52 mm chainline, 170 mm crank arm length (S/M)
Crank: Shimano MT511, steel chainring (32T), 52 mm chainline, 175 mm crank arm length (ML/L/XL/XXL)
Bottom bracket: Shimano MT500, 92 mm, Pressfit
Cassette: Shimano Deore M6100, 10-51T, 12-speed
Chain: Shimano Deore M6100
Max. chainring size: 36 teeth
Saddle: Bontrager Arvada, steel rails, 138 mm width
Seatpost: Bontrager Comp, 6061 aluminum, 31.6 mm, 8 mm offset, 330 mm length (S)
Seatpost: Bontrager Comp, 6061 aluminum, 31.6 mm, 8 mm offset, 400 mm length (M/ML/L/XL/XXL)
Handlebar: Bontrager Comp, aluminum, 31.8 mm, 5 mm rise, 720 mm width (S/M/ML/L/XL)
Handlebar: Bontrager Kovee Elite, aluminum, 35 mm, 5 mm rise, 720 mm width (XXL)
Grips: Bontrager XR Trail Comp, nylon clamp
Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degrees, 60 mm length (S)
Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degrees, 70 mm length (M/ML)
Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degrees, 80 mm length (L/XL)
Stem: Bontrager Kovee Pro, 35 mm, Knock Block, Blendr compatible, 13 degrees, 90 mm length (XXL)
Brake: Hydraulic disc brake, MT4100 brake lever and MT410 caliper from Shimano
Brake disc: Shimano RT56, 6-hole disc mount, 160 mm / Shimano RT56, 6-hole disc mount, 180 mm
Max. brake disc diameter: 180 mm front, 160 mm rear
Weight: M - 12.25 kg / 27.01 lbs
Max. weight: This bicycle has a maximum weight limit (bicycle, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
