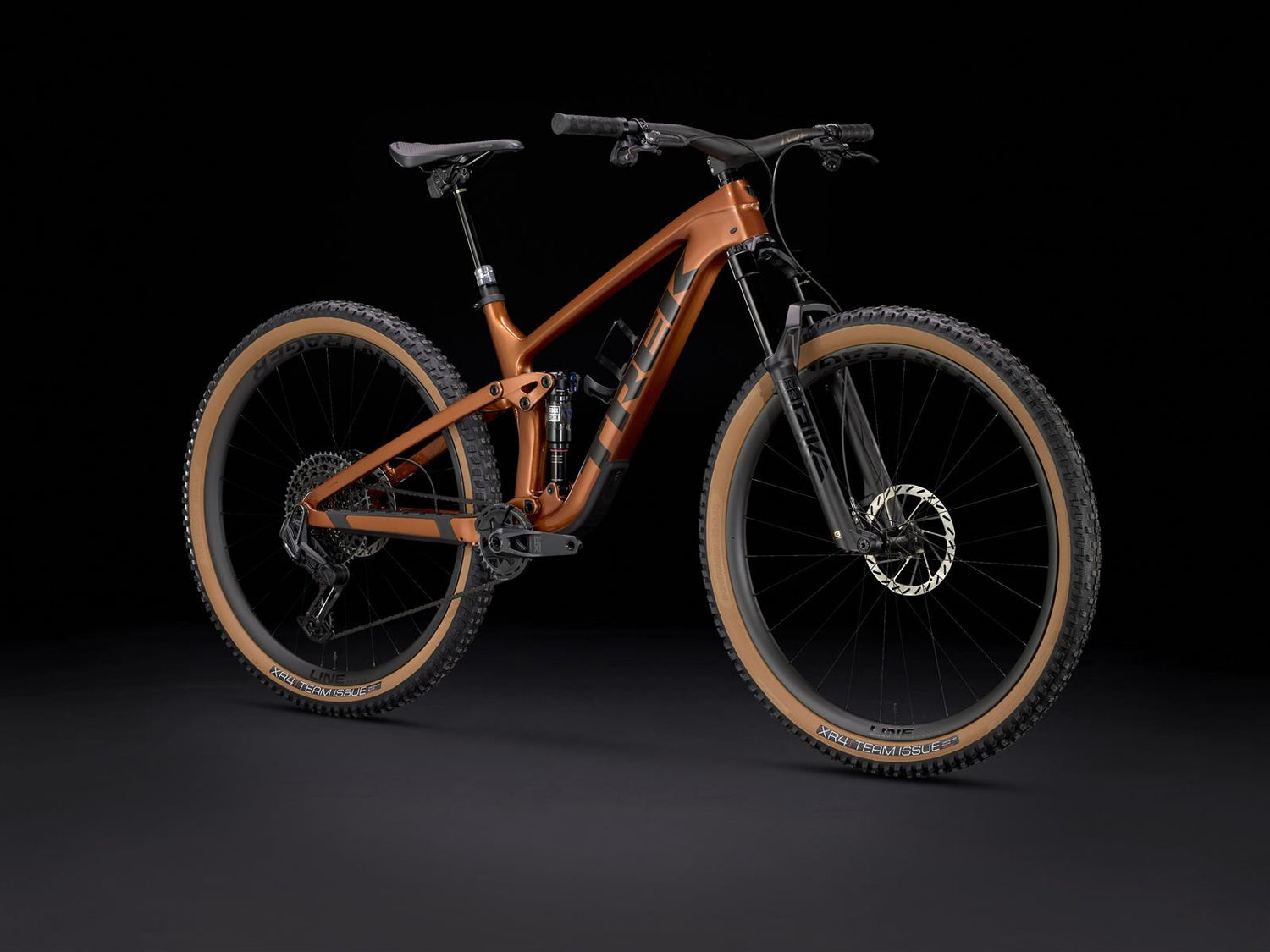

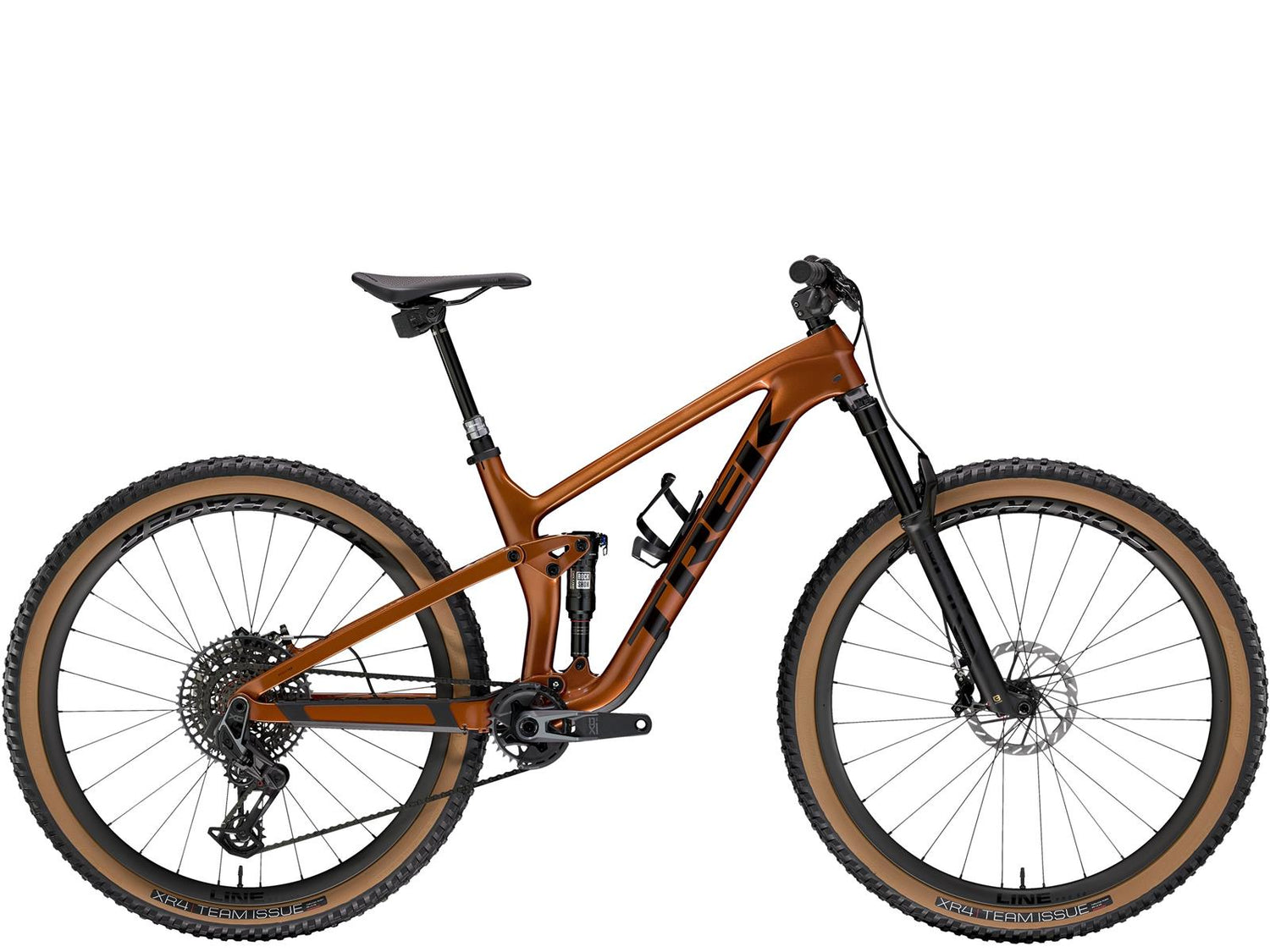

Trek Top Fuel 9.9 XO AXS Pennyflake

The Top Fuel 9.9 is a full-suspension carbon mountain bike for those who make no compromises on components and don't want to be limited in terms of usage. Thanks to high-end components and a lightweight carbon frame, this uncompromising fun machine picks up speed on flowing sections and is a blast on technical single trails.

Trek offers you a lightweight and stiff frame made of OCLV Mountain Carbon, a RockShox Pike Ultimate fork with 130 mm travel, DebonAir spring, and Charger 3 RC2 damping, a RockShox Deluxe Ultimate RCT shock with 120 mm travel, and a directly mounted, both precise and robust SRAM X0 AXS 12-speed drivetrain. It also comes with wide Bontrager Line Elite 30 carbon wheels with a Rapid Drive hub with 108 teeth for instant power transfer, reliable, powerful 4-piston disc brakes for maximum confidence on all descents, a RockShox Reverb AXS dropper post, and a carbon handlebar/stem unit.

• This bike combines the performance and off-road capability of a trail bike with the pedaling efficiency of an XC machine in an absolutely impressive package.
• The wider Bontrager Line Elite 30 wheels improve tire support, allowing you to ride with lower tire pressure for more traction.

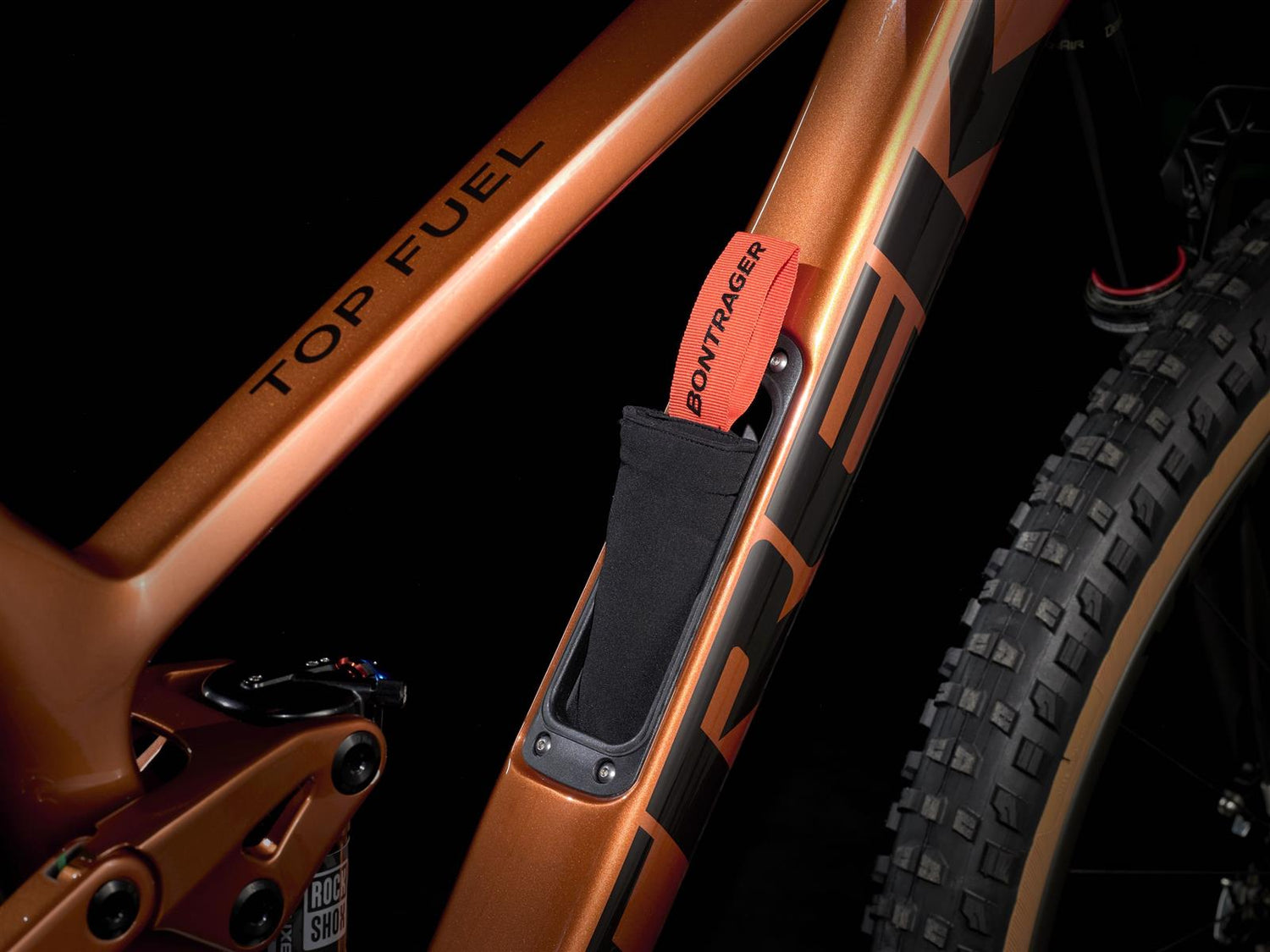

• A sleek, frame-integrated storage compartment allows for the storage of tools and equipment.
• SRAM's directly mounted, wireless T-Type drivetrain sets new performance standards with its precise shifting even under load and unparalleled robustness.
• A removable Knock Block 2.0 allows for a greater steering angle and protects cables and lines without restricting the turning radius.

Equipment:

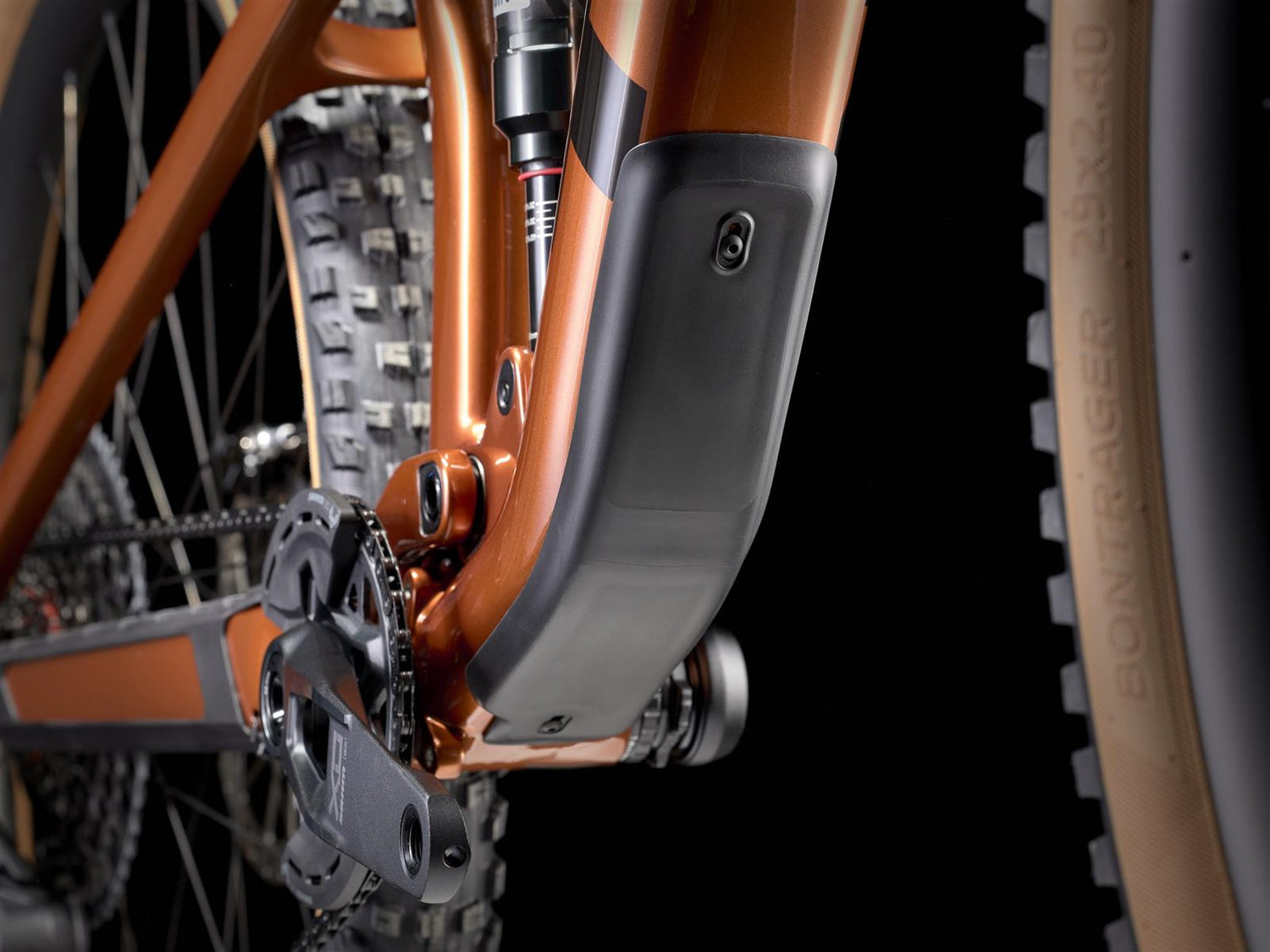

Frame: OCLV Mountain Carbon, internal storage compartment, tapered head tube, Knock Block 2.0, guided internal cable routing, downtube protector, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork: RockShox Pike Ultimate, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth axle, 130 mm travel

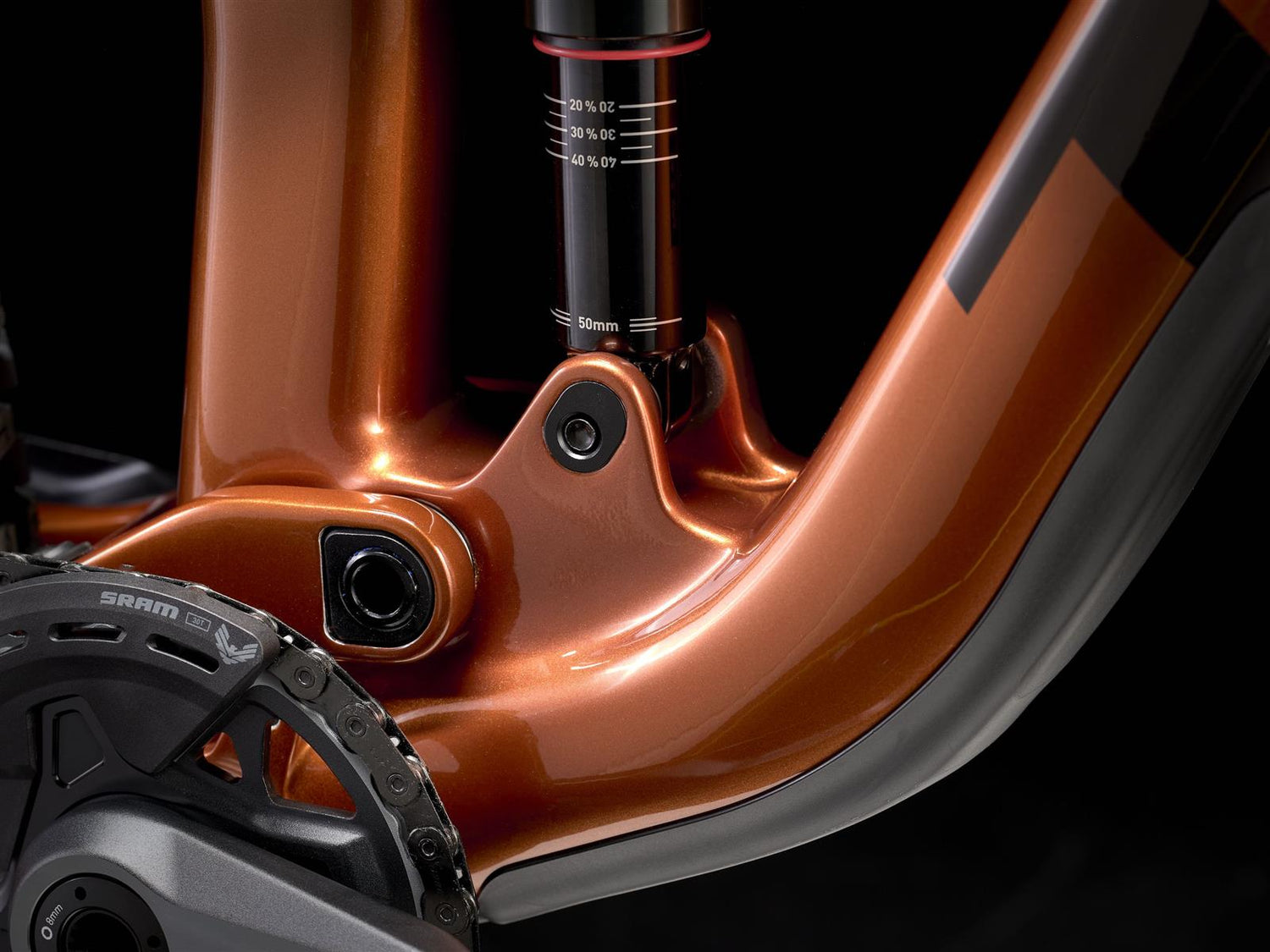

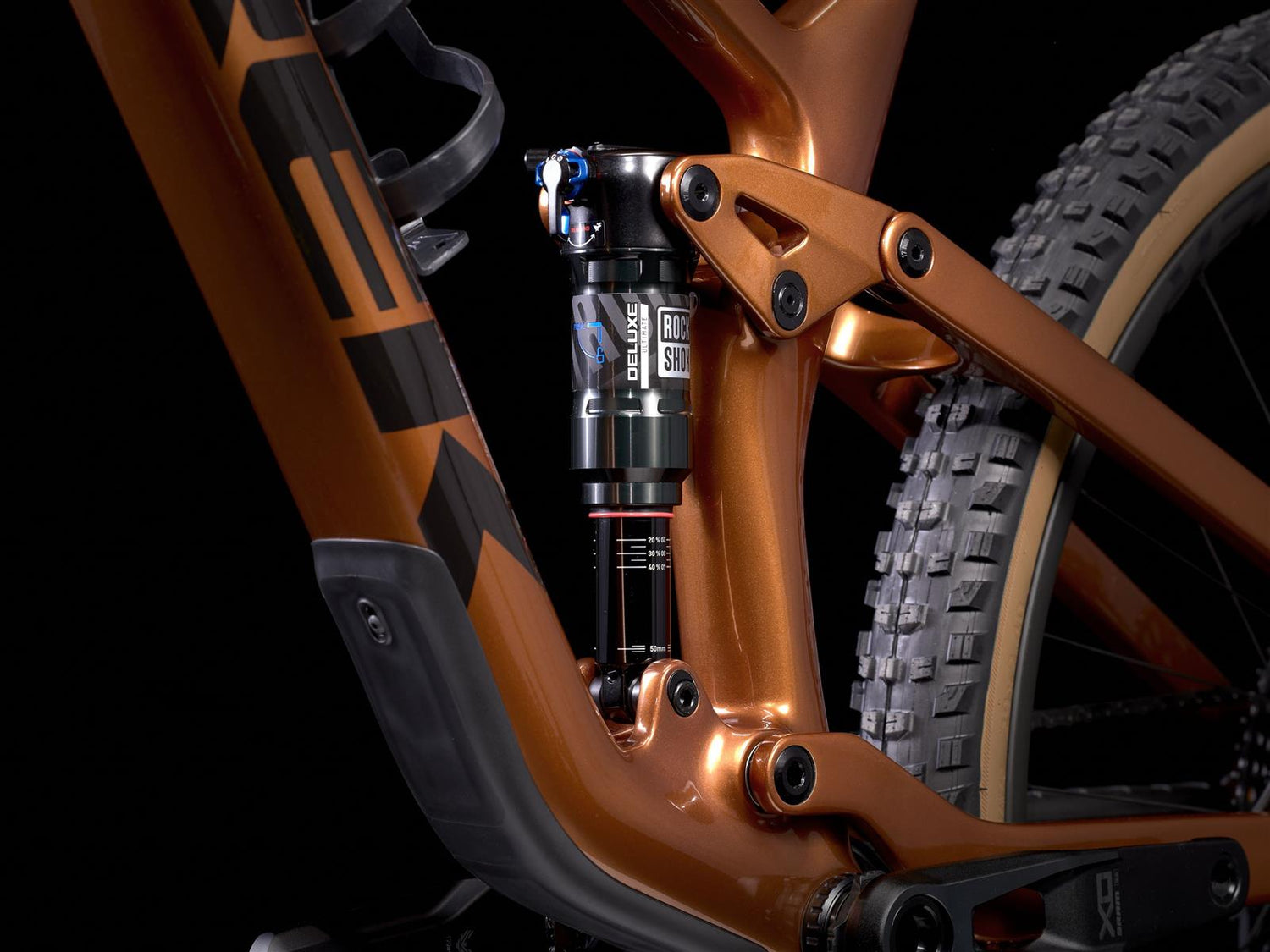

Shock: RockShox Deluxe Ultimate RCT, 185 x 50 mm Max. compatible fork travel: 130 mm (541 mm axle to crown)
Front Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle
Rear Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, SRAM XD freehub body, Boost148, 12 mm thru axle
Rear Quick Release: Bontrager Switch thru axle, removable lever

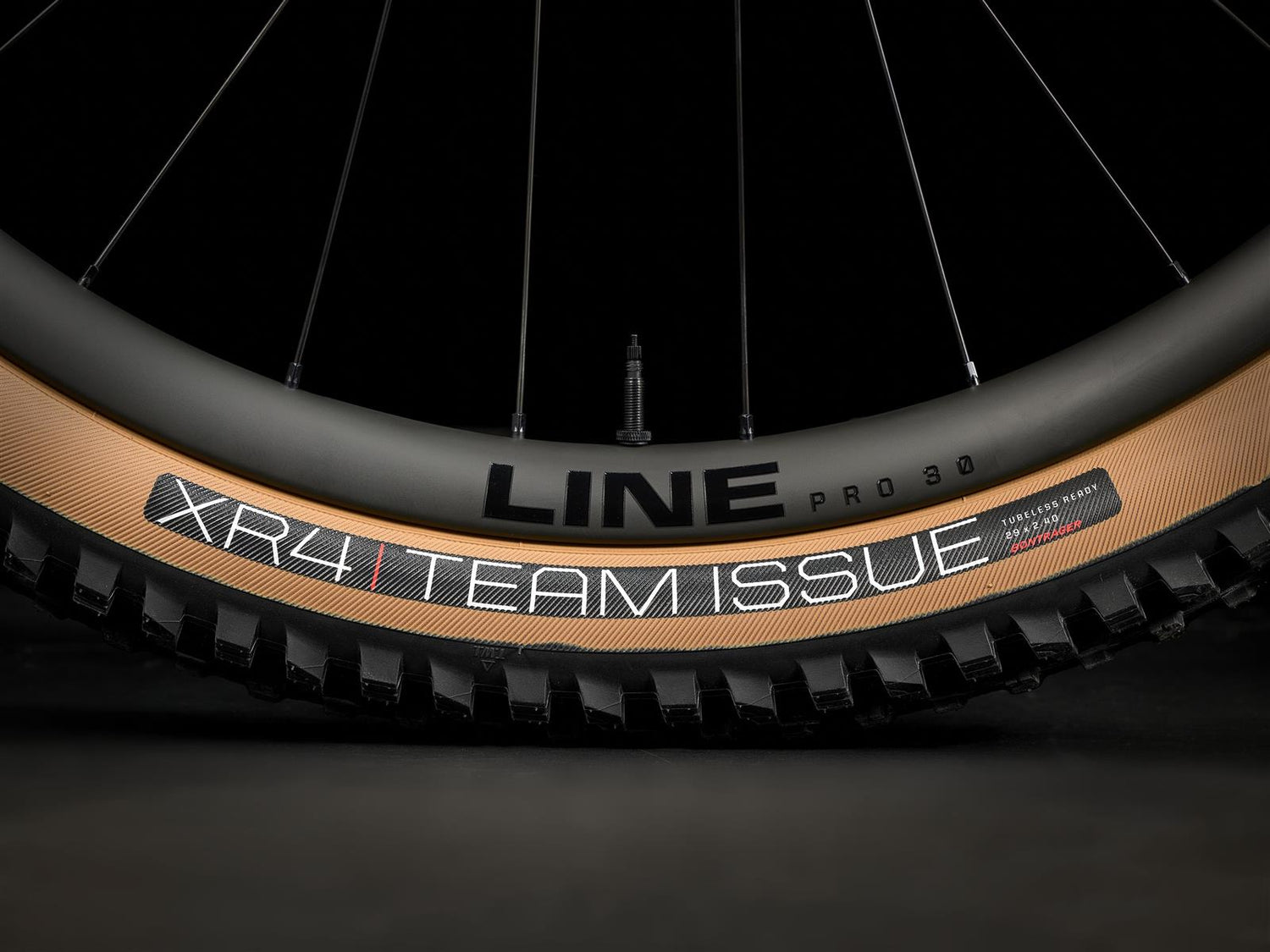

Tires: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall protection, aramid bead, 120 TPI, 29 x 2.40
Tire Spare Part: Bontrager TLR sealant, 177 ml
Rim Tape: Bontrager TLR
Max. Tire Size: Frame: 29 x 2.50", Fork: see manufacturer
Shifter: SRAM AXS POD Ultimate, paired with dropper post

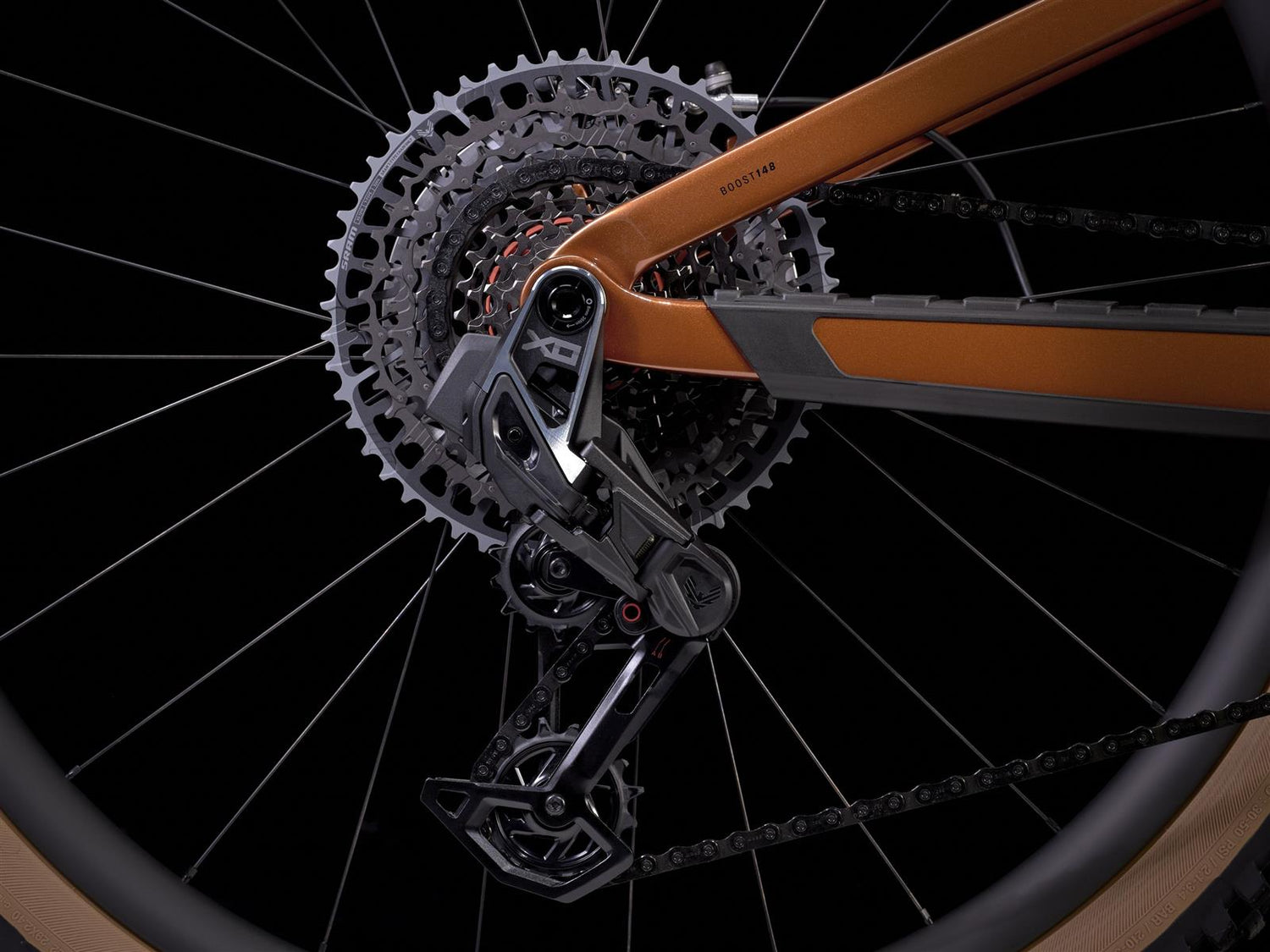

Rear Derailleur: SRAM X0 Eagle AXS, T-Type

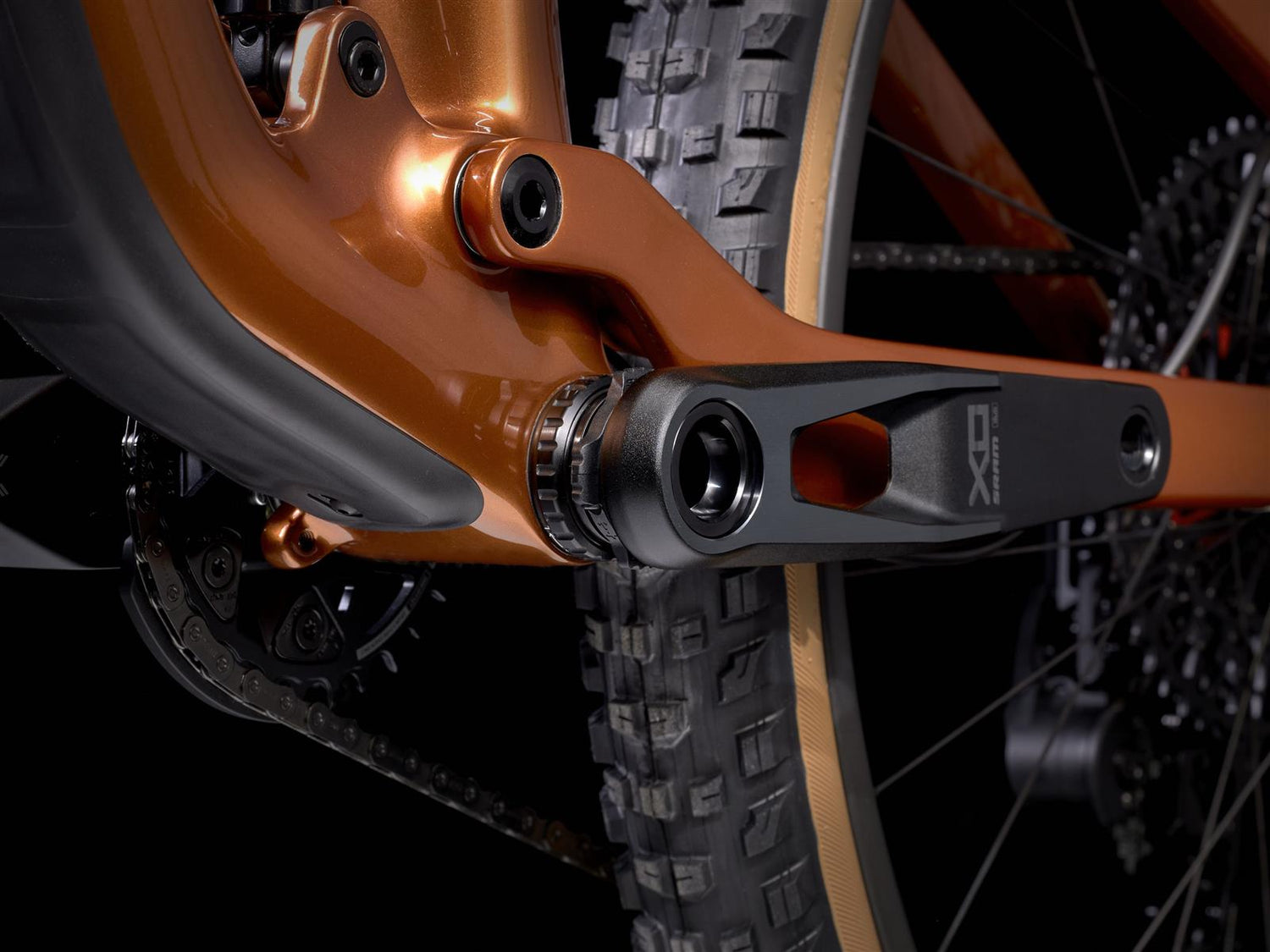

Crank: SRAM X0 Eagle, DUB, 30 T, T-Type, 55 mm chainline, 170 mm crank arm length
Bottom Bracket: SRAM DUB MTB Wide, 73 mm, BSA thread
Cassette: SRAM Eagle XS-1295, T-Type, 10-52 T, 12-speed
Chain: SRAM X0 Eagle, T-Type, 12-speed
Max. Chainring Size: 1x: 36 teeth round, 34 teeth oval, min. 28 teeth
Saddle: Bontrager Arvada, austenitic rails, 138 mm width
*Seatpost Size: S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
Size M, M/L: RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length
Size L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length

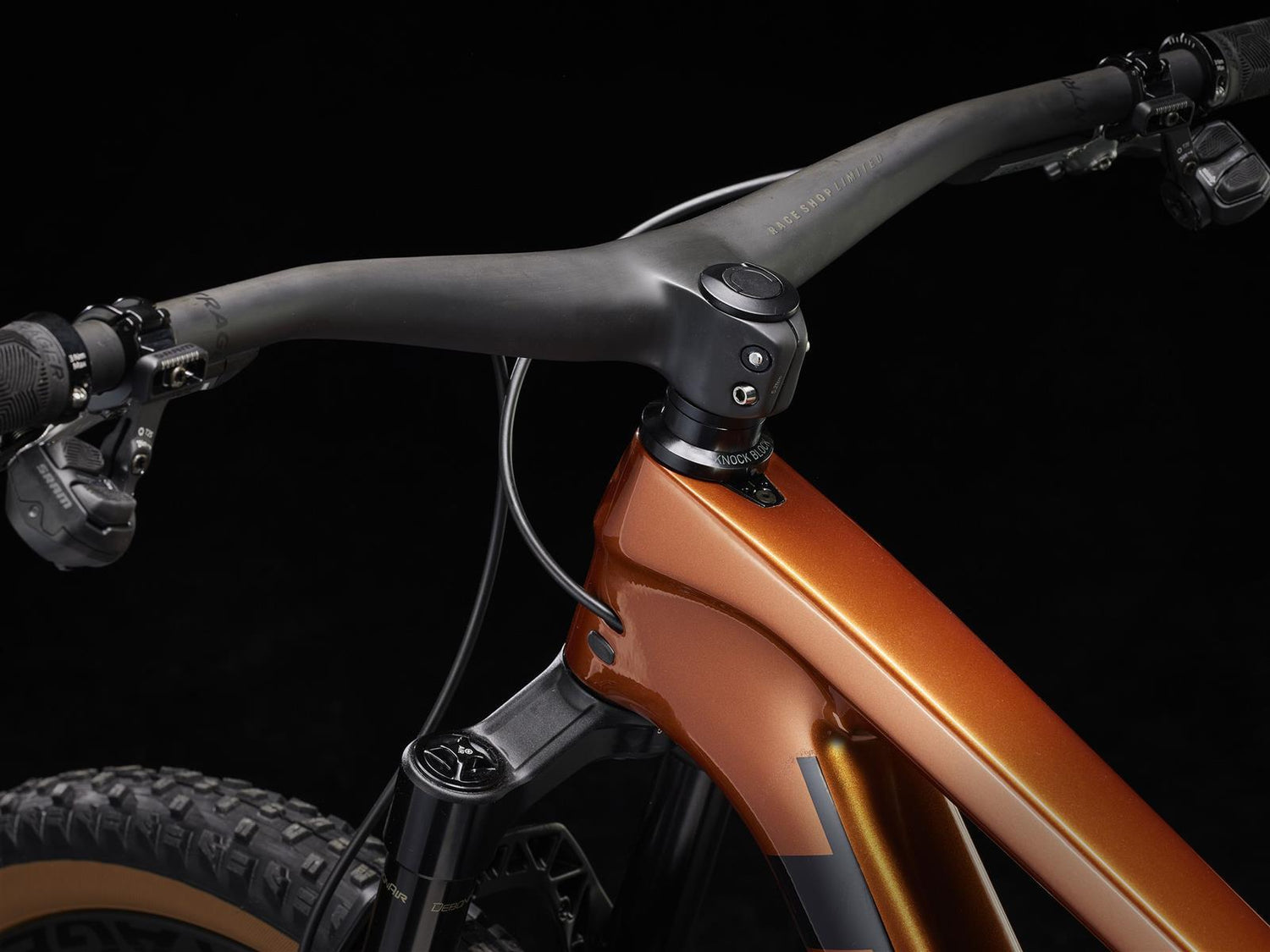

*Handlebar/Stem (integrated) Size: S: Bontrager RSL, integrated handlebar/stem unit, OCLV Carbon, 27.5 mm rise, 820 mm width, stem with 0 degree rise, 35 mm stem length
Size M, M/L, L, XL: Bontrager RSL, integrated handlebar/stem unit, OCLV Carbon, 27.5 mm rise, 820 mm width, stem with 0 degree rise, 45 mm stem length
Brake: Hydraulic 4-piston disc brake SRAM Level Silver

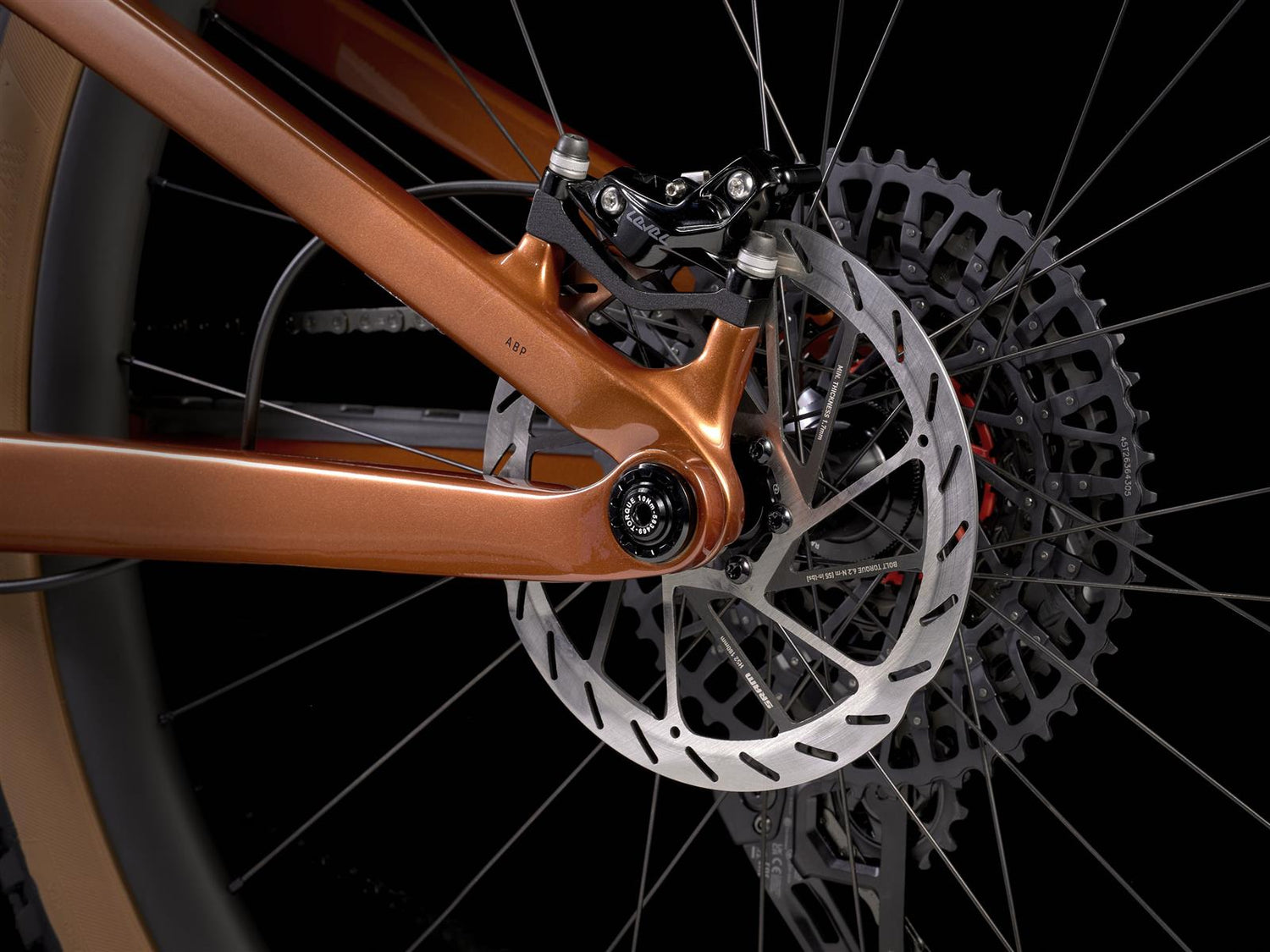

Brake Disc: SRAM HS2, 6-bolt, 180 mm
Brake Disc Diameter: Max. brake disc diameter - frame: 180mm, fork: see fork manufacturer
Battery: SRAM eTap battery pack (with charger)
Weight: M – 12.95 kg (with TLR tire sealant, without tubes)
Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

*Please note - the specification applies to all sizes unless stated otherwise
