Giant Trance X Advanced Frame Set - Ancient Ink
Trance X Advanced Frame Set - Ancient Ink - S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Do you have questions about the product?

Description
Description
Overcome technical climbs and tackle challenging descents. This brand new carbon trail bike offers you 140 mm Maestro rear suspension and plenty of adjustment options. You can adjust the frame geometry and adapt the size of the rear wheel to the terrain.
More Travel

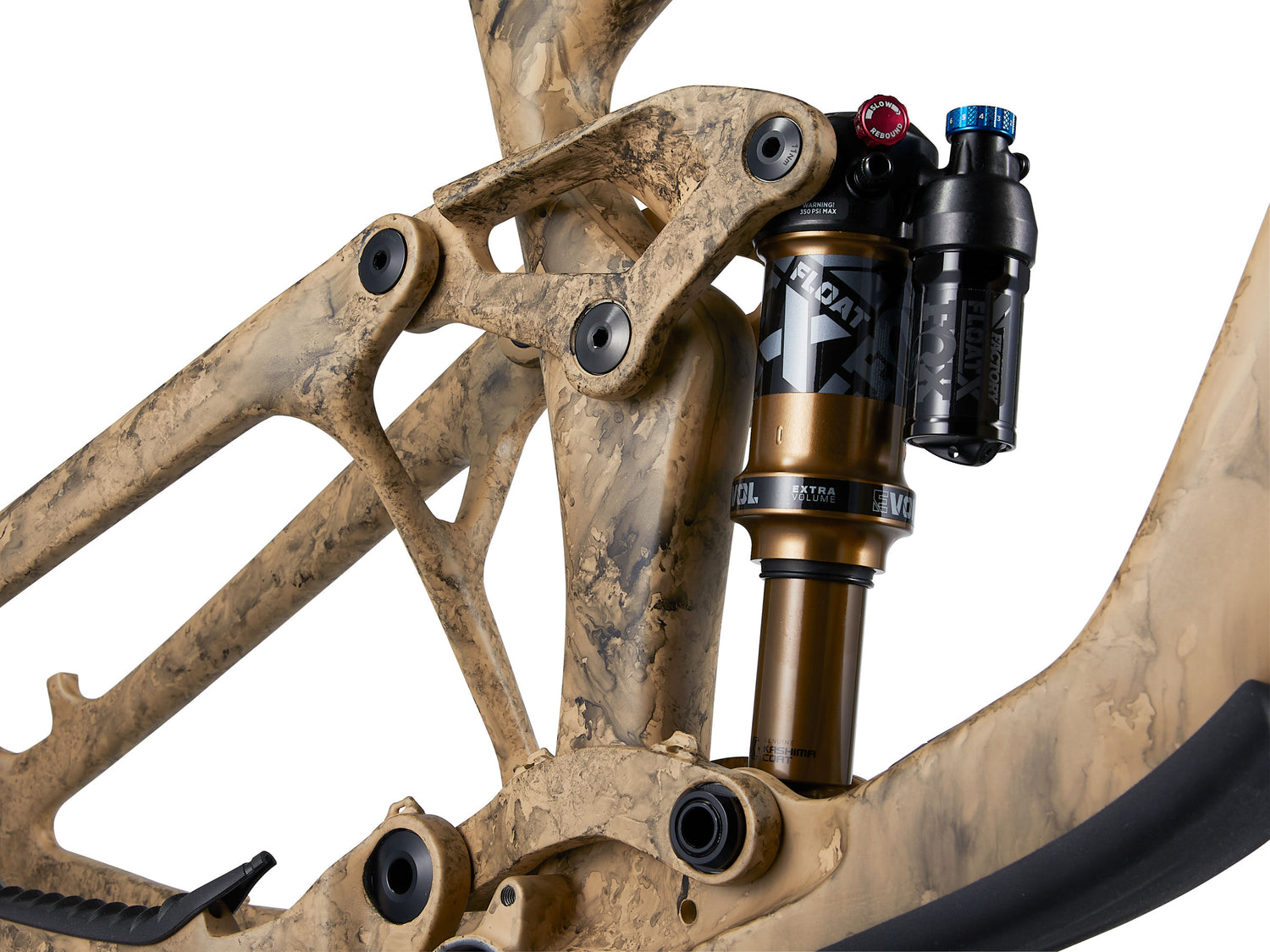

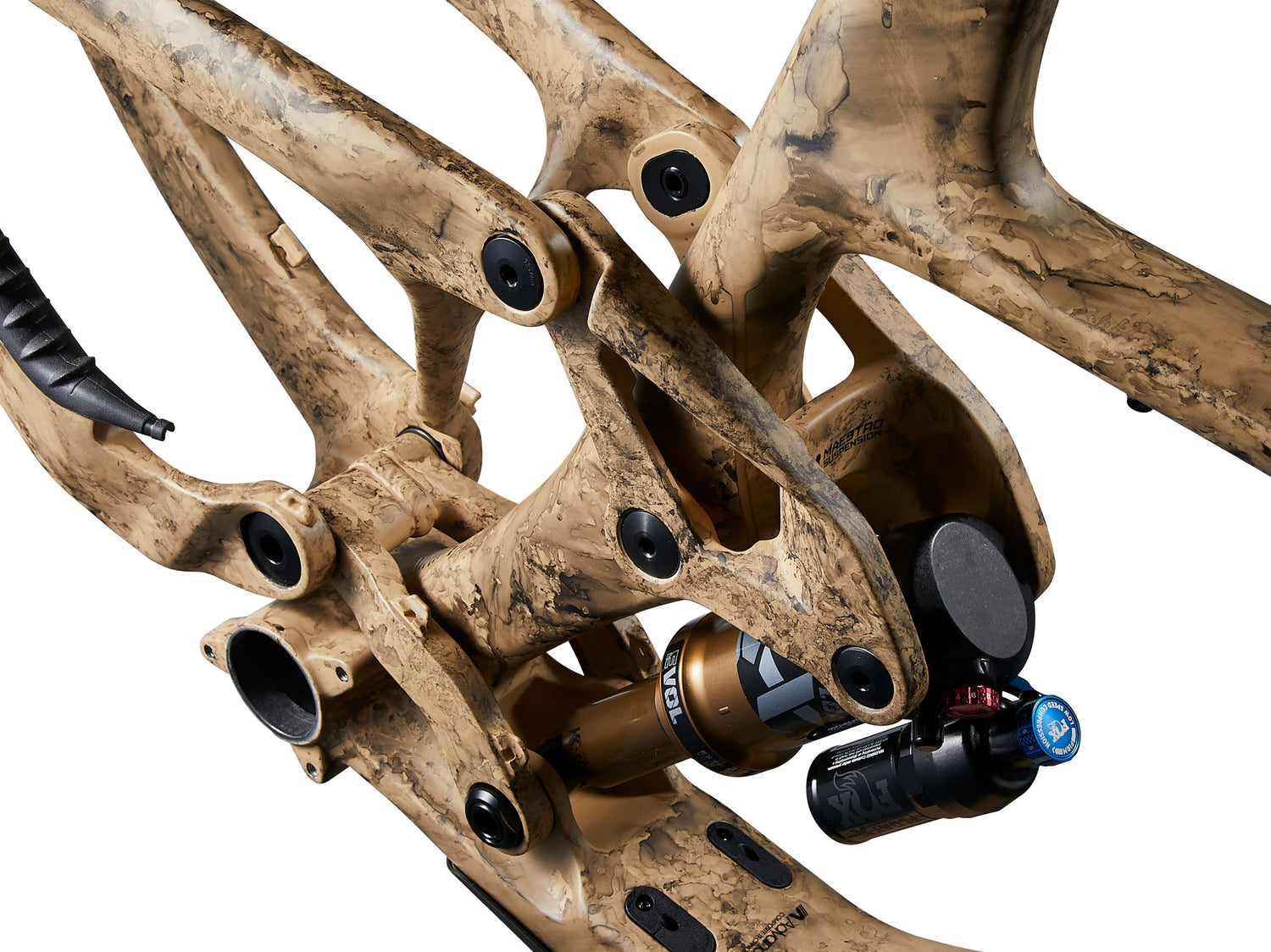

The new Maestro rear suspension offers 5 mm more travel than the previous generation, from 135 mm to 140 mm. A trunnion mount and an Advanced Forged Carbon rocker arm provide longer travel and a smooth, active riding feel. The rear suspension, combined with the 150 mm suspension fork, ensures superior ride quality and control on technical singletrack terrain.
Adjustable Trail Geometry
With the three-position Maestro flip-chip, the rider can adjust the frame geometry to their riding style and terrain. The high position setting provides more ground clearance, a good option for tight, technical terrain. In the low position setting, the head tube becomes slacker and the bottom bracket drops, ideal for confident handling at higher speeds.
Rear Wheel Options
All models come with 29-inch front and rear wheels, but with the flip-chip, you can also opt for a mixed wheel setup with a 27.5-inch rear wheel. The standard 29-inch rear wheel optimizes stability and rollover behavior, while a 27.5-inch rear wheel offers a more agile, snappier ride feel and more clearance between saddle and tire. Some riders prefer this "mullet" setup for steep, technical terrain.
HIGHLIGHTS
The new Advanced Carbon frame set with Maestro suspension offers 5 mm more travel than the previous generation, from 135 mm to 140 mm. The rear suspension is combined with a 150 mm fork. The frame is equipped with two flip chips with three positions, offering ultimate versatility and adjustability. With the rear flip-chip located on the Maestro linkage, you can adjust the frame geometry and tune the ride to your style and terrain. With a second flip-chip on the headset, the reach can be easily adjusted by 10 mm (-5 mm, 0 mm, or +5 mm) without having to change your stem. Also new is an integrated storage compartment in the down tube where you can store your essential trail items.
Equipment:
Frame sizes: S, M, L, XL
Color: Ancient Ink
Frame: Advanced full carbon frame, Maestro rear triangle with geometry flip-chip, carbon rocker arm, 140 mm travel, 12x148 mm, SRAM UDH derailleur hanger Max. tire clearance: 2.5" Max. chainring size: 34T
Shock: Fox Float X Factory, 185x52.5 mm, trunnion mount, custom tuned
Accessories (partially installed): 2.5" max tire size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection
Weight (kg): 3.42 (incl. Fox Float X Factory)
* Specification may vary in details in exceptional cases, depending on the manufacturer.
Specifications
Specifications
-
Age group
-
Gender
-
Wheel size
-
Material
-
Model year
-
Frame travel
