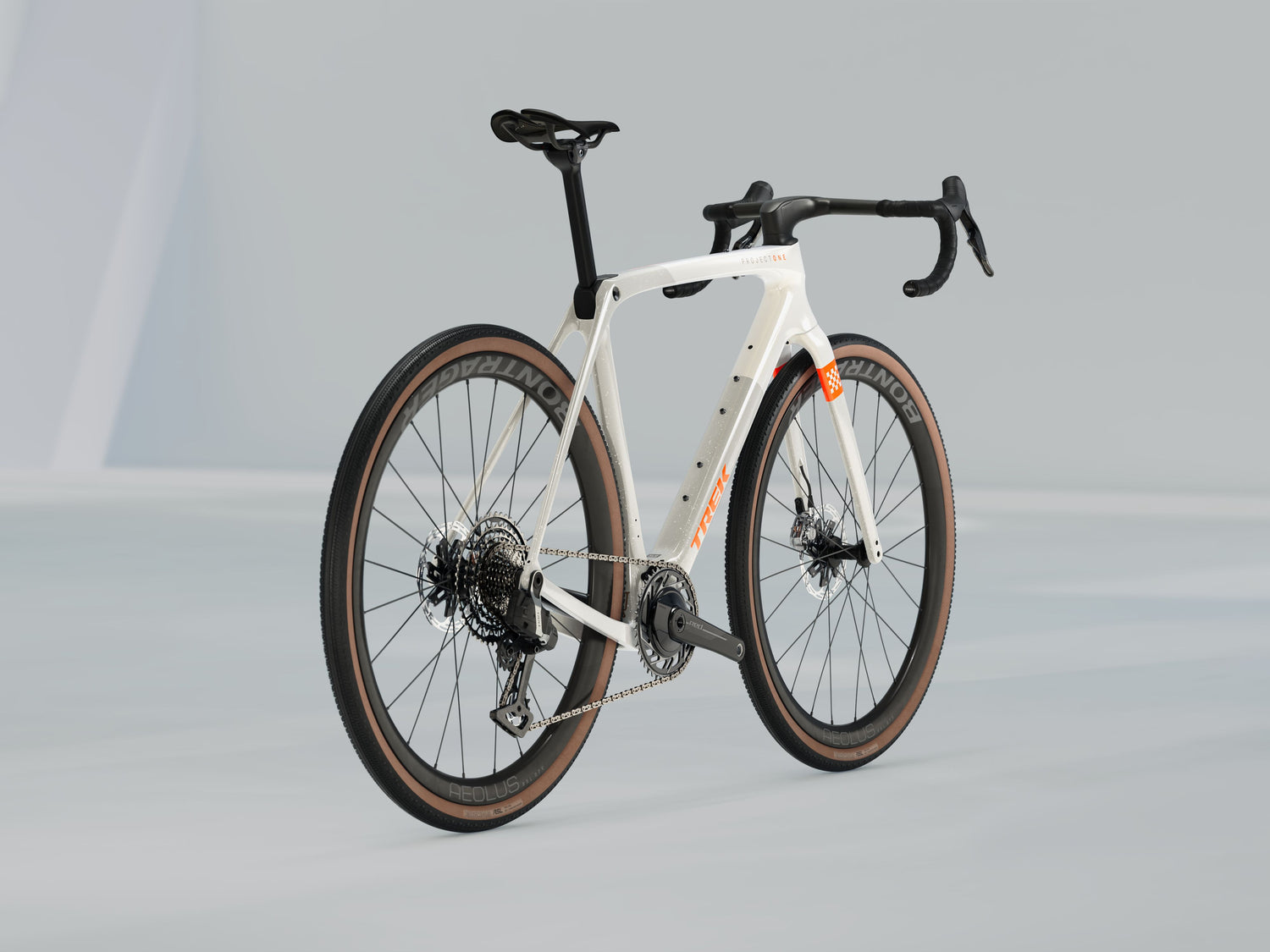

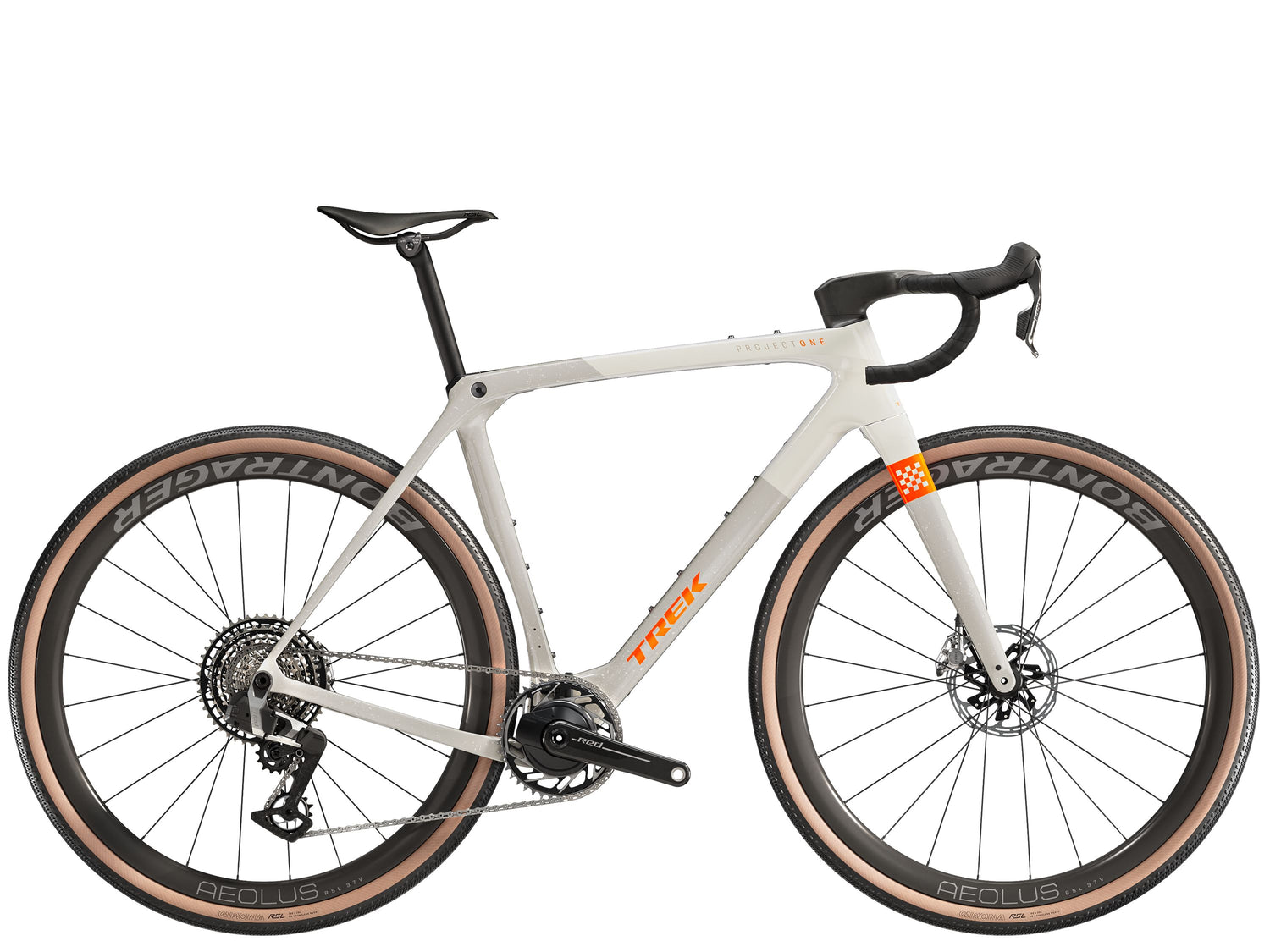

Trek Checkmate SLR 9 AXS - Era White/Buff Beige

The Checkmate SLR 9 AXS is our fastest and lightest gravel race bike, designed to chase podiums on rough roads. It combines a lightweight aerodynamic design with IsoSpeed technology for vibration damping and a new gravel race geometry, allowing you to be ready for an attack at any time without wasting your energy beforehand. To keep you at the front, it is equipped with top-notch components, such as carbon wheels and the latest ergonomic wireless RED AXS XPLR drivetrain from SRAM.

Frame Set

• Frame: 800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, hidden cable routing, T47, flat mount disc brake mount, integrated chain guide, removable front derailleur mount, UDH, tapered 142 x 12 mm thru axle

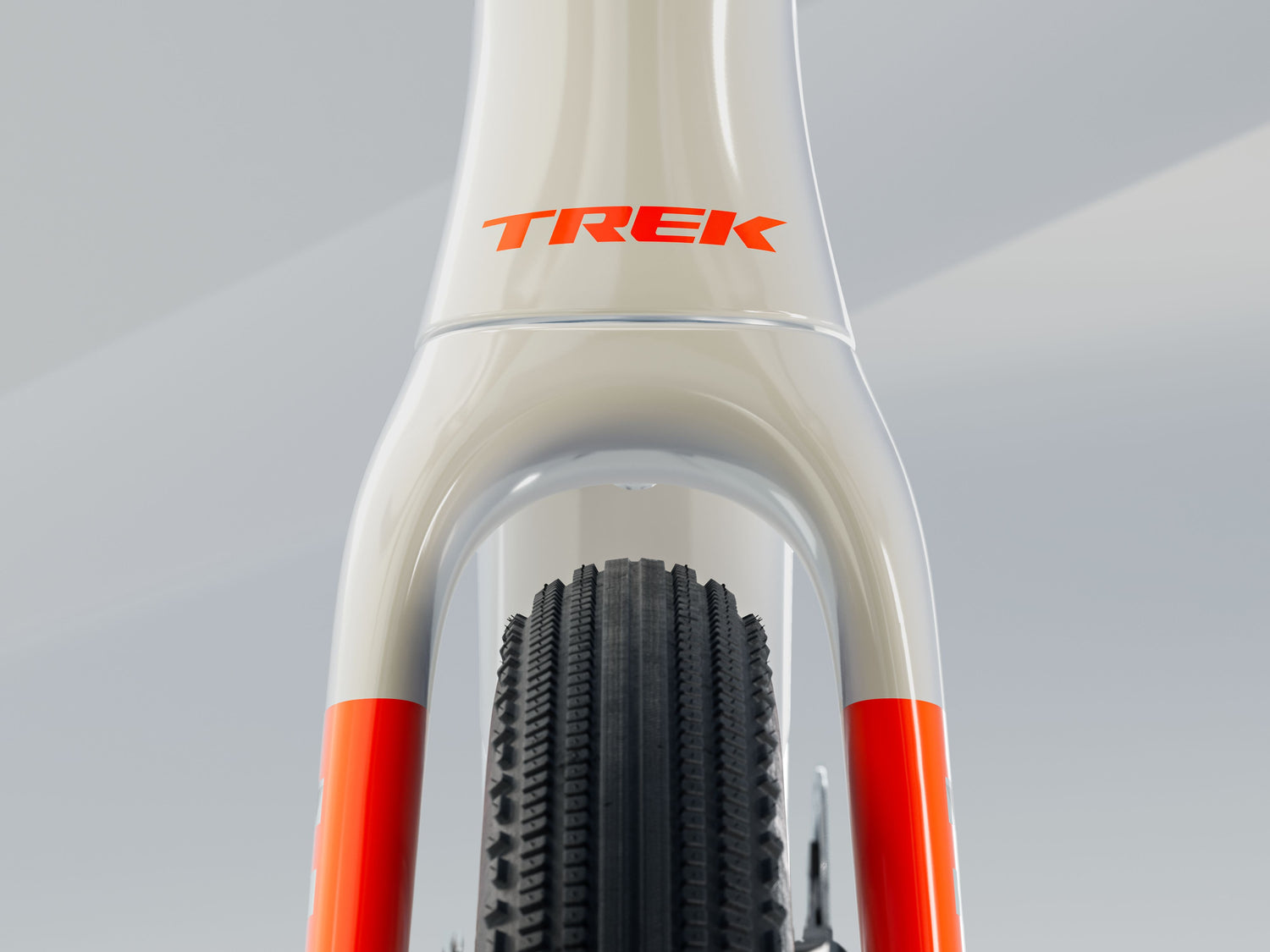

• Fork: Checkmate SLR, full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc brake mount, 12 x 100 mm thru axle

Weight

• Weight: M/L - 7.55 kg / 16.65 lbs (with TLR tire sealant, without tubes)
• Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 125 kg.

E-System

• Battery: SRAM eTap battery pack (with charger)

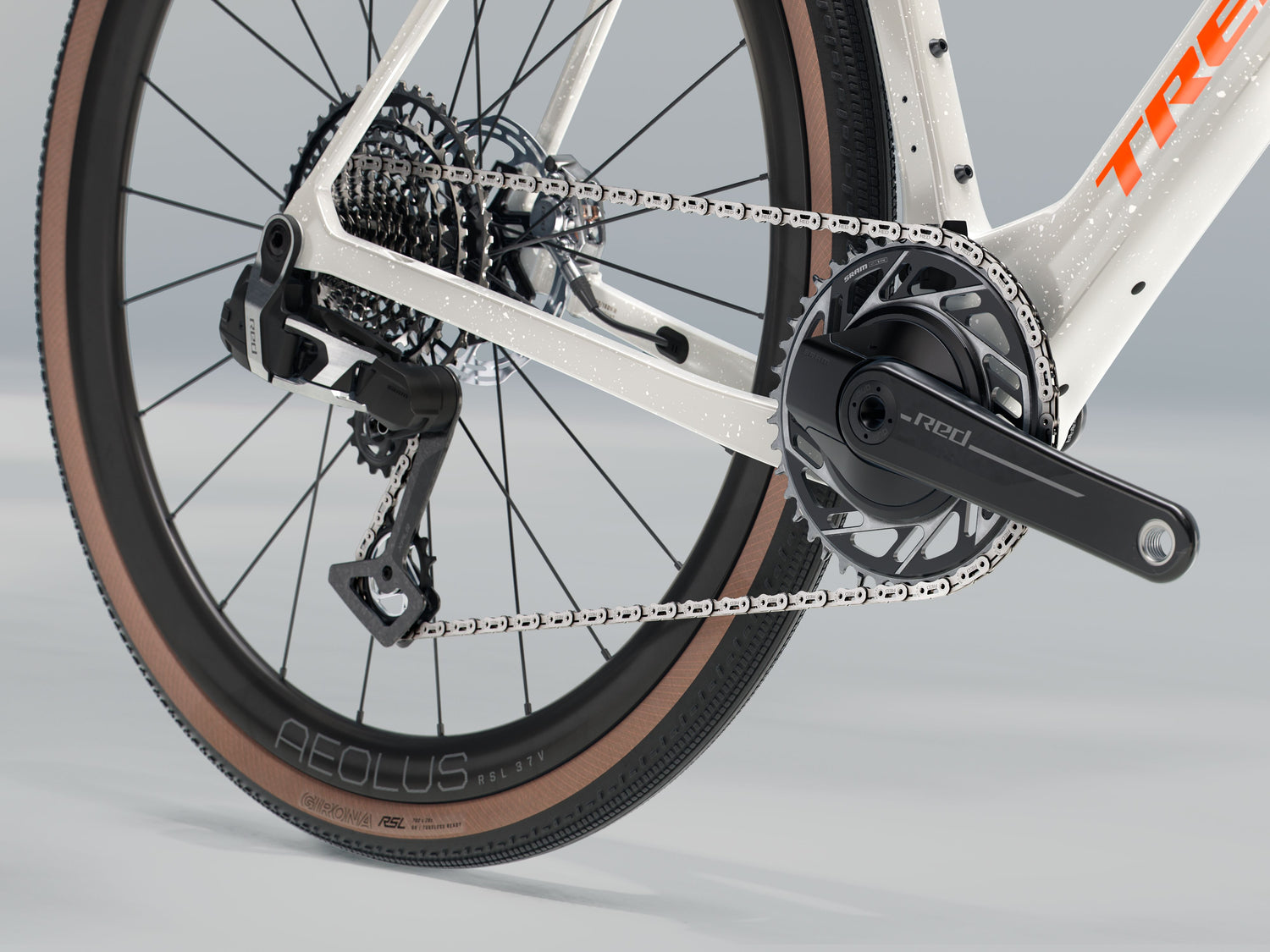

Drivetrain

• Shifters: SRAM RED AXS E1
• Rear Derailleur: SRAM RED XPLR eTap AXS, max. 46T on largest cog
• Crank:
  • Size: XS, S: SRAM RED XPLR, power meter, 42T, DUB Wide, 165 mm crank arm length
  • Size: M: SRAM RED XPLR, power meter, 42T, DUB Wide, 170 mm crank arm length
  • Size: ML, L: SRAM RED XPLR, power meter, 42T, DUB Wide, 172.5 mm crank arm length
  • Size: XL: SRAM RED XPLR, power meter, 42T, DUB Wide, 175 mm crank arm length
• Bottom Bracket: SRAM DUB, T47, threaded, internal bearing
• Cassette: SRAM XG-1391, 10-46T, 13-speed
• Chain: SRAM RED E1, 12-speed
• Max. Chainring Size: See maintenance manual

Wheels

• Front Wheel: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37 mm rim height, 100 x 12 mm thru axle
• Rear Wheel: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37 mm rim height, 142 x 12 mm thru axle
• Front Quick Release: Bontrager Switch tapered thru axle, removable lever
• Rear Quick Release: Bontrager Switch tapered thru axle, removable lever
• Tires: Bontrager Girona RSL GR, Tubeless-Ready, Aramid bead core, 220 TPI, 700 x 38 mm
• Tire Spare Part: Bontrager TLR sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: 45 mm without fenders

Components

• Saddle:
  • Size: XS, S: Aeolus RSL, carbon rails, 155 mm width
  • Size: M, ML, L, XL: Aeolus RSL, carbon rails, 145 mm width
• Seatpost:
  • Size: XS, S, M: KVF Aero carbon seatpost, 5 mm offset, 280 mm length
  • Size: ML, L, XL: KVF Aero carbon seatpost, 5 mm offset, 320 mm length

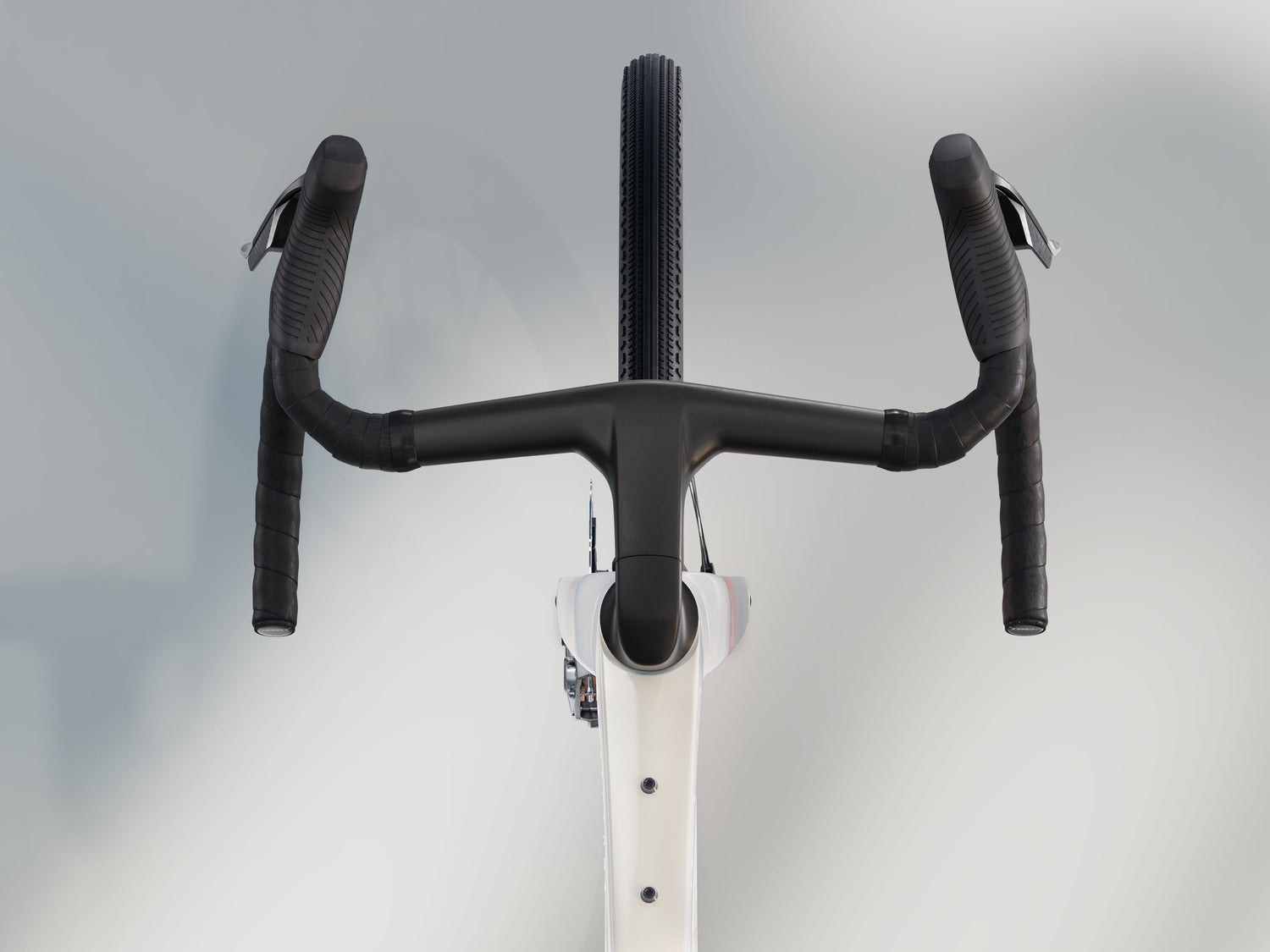

• Handlebar/Stem (integrated):
  • Size: XS: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm Reach, 124 mm Drop, 37 cm top handlebar width, 40 cm bottom handlebar width, 70 mm stem length
  • Size: S: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm Reach, 124 mm Drop, 39 cm top handlebar width, 42 cm bottom handlebar width, 80 mm stem length
  • Size: M: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm Reach, 124 mm Drop, 39 cm top handlebar width, 42 cm bottom handlebar width, 90 mm stem length
  • Size: ML, L: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm Reach, 124 mm Drop, 41 cm top handlebar width, 44 cm bottom handlebar width, 100 mm stem length
  • Size: XL: Trek Aero RSL Road integrated handlebar/stem unit, OCLV Carbon, Race Fit, 80 mm Reach, 124 mm Drop, 41 cm top handlebar width, 44 cm bottom handlebar width, 110 mm stem length
• Brake Disc: SRAM Paceline X, rounded, Centerlock, 160 mm
• Brake Disc Diameter: Max. brake disc diameter: 180 mm front & rear

* Specification may vary in details in exceptional cases, depending on the manufacturer.
