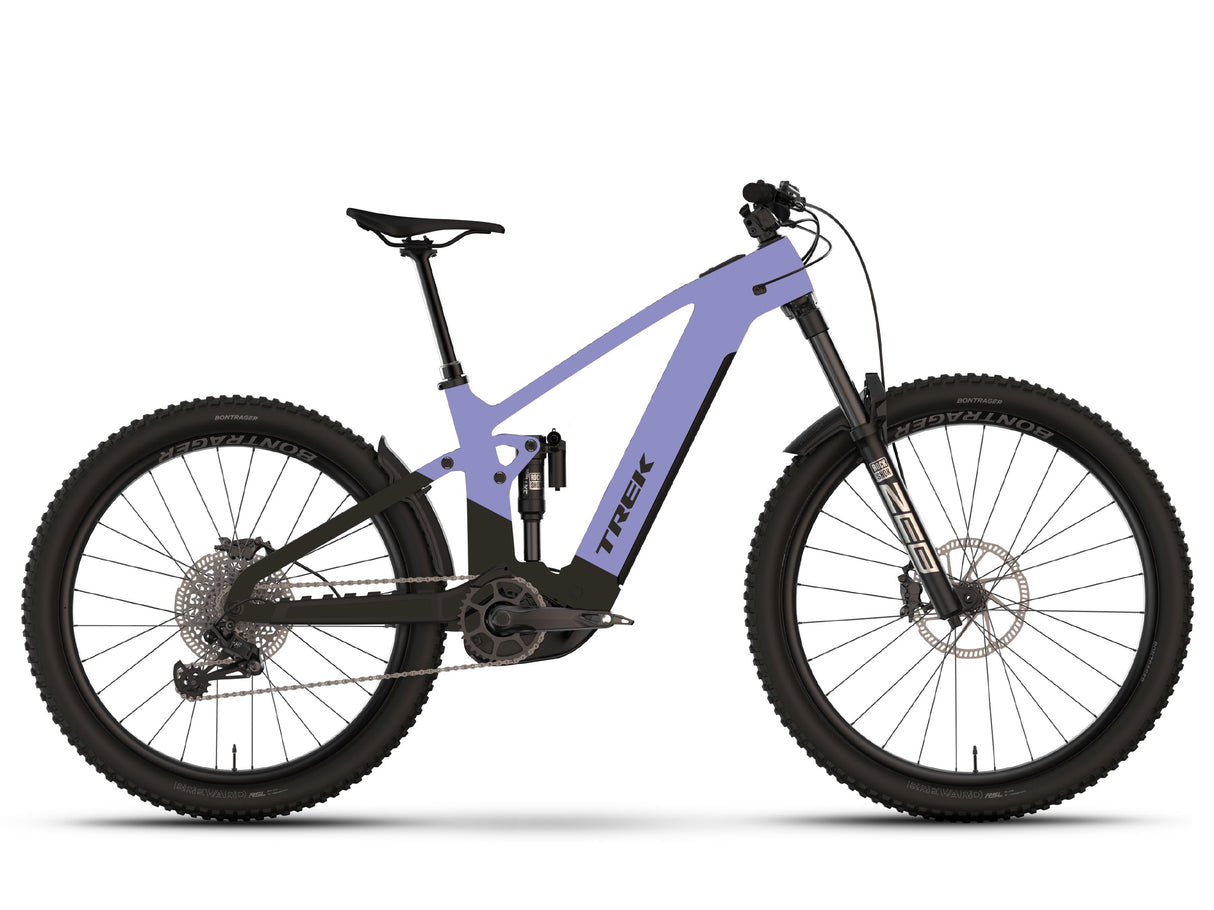

Trek Rail+ 9.9 XX AXS T-Type Gen 5 - Lavender Haze 800Wh

As our best electric carbon enduro bike, the Rail+ 9.9 is built for your most epic runs. The robust carbon frame comes with a high-quality RockShox suspension with 160 mm front and rear travel and can be adjusted to your riding style thanks to adjustable geometry. A Bosch CX Line motor with plenty of torque and a removable, integrated RIB 2.0 battery with 800 Wh pushes you confidently up even the most challenging and longest climbs. It is rounded off by a package of features that leaves nothing to be desired - such as the carbon wheels and the wireless SRAM XX transmission.

Frame Set

• Frame: OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, internal Control Freak cable routing, Motor Armor, Boost148, 12 mm thru axle, 160 mm travel
• Fork: RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damping, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth axle, 160 mm travel
• Shock: RockShox Super Deluxe Ultimate RC2T, 205 x 65 mm
• Max. compatible fork travel: 180 mm

Wheels

• Front Wheel:
  • Size: S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 27.5"
  • Size: M, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 29"
• Rear Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle, 27.5"
• Rear Quick Release: Bontrager Switch thru axle, removable lever
• Tires:
  • Bontrager Brevard RSL SE, Tubeless Ready, Triple Compound, Aramid bead core, 60 TPI, 27.5 x 2.50
  • Size: M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, Triple Compound, Aramid bead core, 60 TPI, 29 x 2.50
• Tire Spare Part: Bontrager TLR Sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: Frame: 27.5 x 2.60"

E-System

• Charger: Bosch Standard Charger 4 A, 230 V, Smart System
• Controller: Bosch System Controller BRC3100, Smart System
• Motor: Bosch Smart System Performance Line CX BDU38, 250 Watt, 85 Nm, 25 km/h

Drivetrain

• Rear Derailleur: SRAM XX Eagle AXS, T-Type
• Crank: SRAM XX Eagle, 165 mm crank arm length
• Cassette: SRAM Eagle XS-1297, T-Type, 10-52 T, 12-speed
• Chain: SRAM XX Eagle, T-Type, 12-speed
• Pedal: Non-slip pedals with reflectors
• Max. Chainring Size: 1x: 36T

Components

• Saddle: Verse Short Comp, steel rails, 145 mm width
• Seatpost:
  • Size: S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
  • Size: M, L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
• Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm Rise, 780 mm Width
• Grips: Bontrager XR Trail Elite, Nylon clamp
• Stem: Bontrager Line Pro, 35 mm, Blendr compatible, 0 degrees, 45 mm length
• Headset: Integrated compact bearings, 1 1/8" top, 1.5" bottom, compatible with tapered cups
• Brake: SRAM Maven Ultimate hydraulic 4-piston disc brake
• Brake Disc:
  • SRAM, 6-bolt, 200 mm
  • SRAM HS2, 6-bolt, 220 mm
• Brake Disc Diameter: Max. brake disc diameter: Frame: 220 mm

Weight

• Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and load) of 136 kg.

* Specification may vary in details in exceptional cases, depending on the manufacturer.
