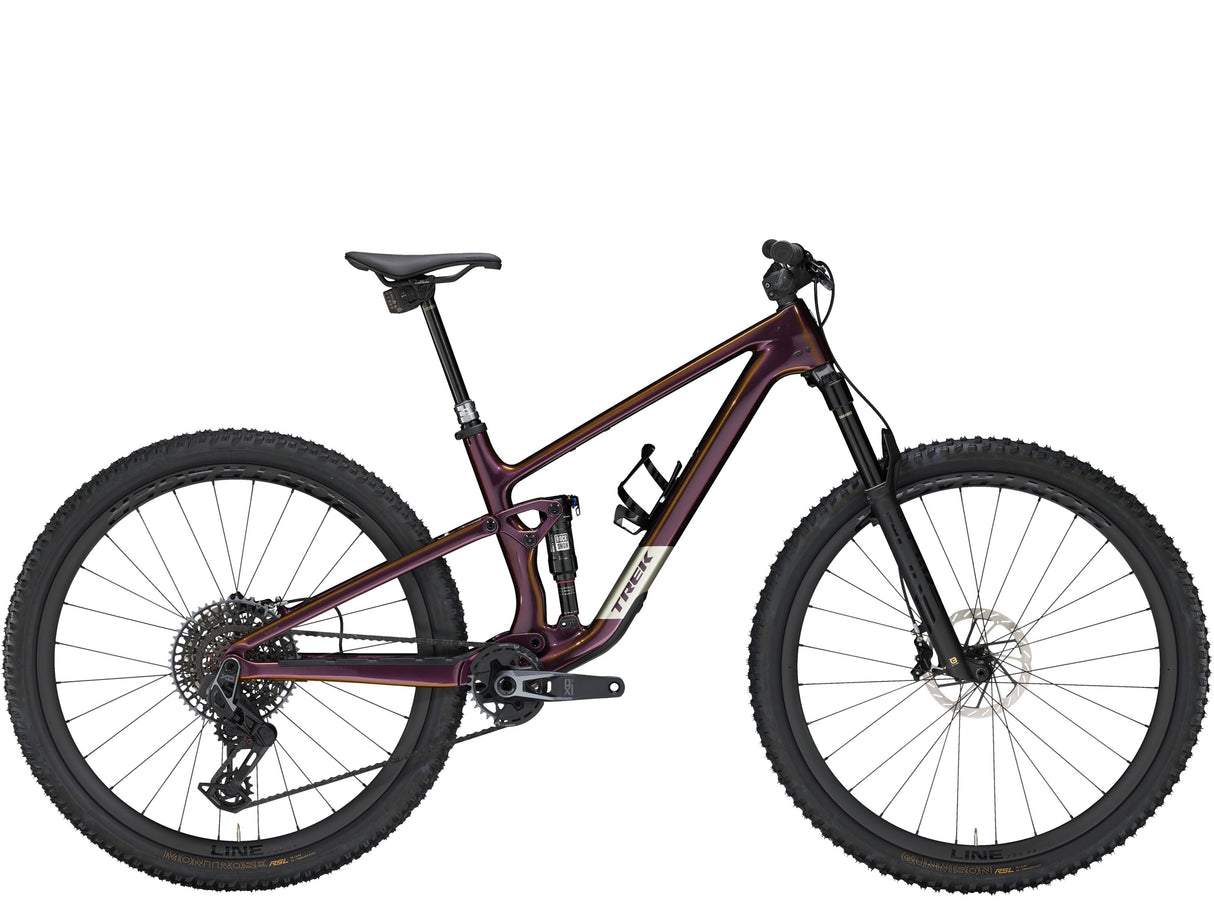

Trek Top Fuel 9.9 X0 AXS Gen 4 - Axinite Flip

The Top Fuel 9.9 X0 AXS Gen 4 is an ultra-light and extremely powerful carbon trail bike built for efficient climbs and miles of singletrack adventures. This top-class trail bike offers ultimate performance: a RockShox Ultimate suspension package with 130 mm front and 120 mm rear travel and a wireless SRAM X0 AXS transmission for particularly smooth and precise gear changes. This high-quality equipment is rounded off by carbon wheels that contribute to the bike's light weight.

Frame Set

• Frame: OCLV Mountain Carbon, internal storage compartment, tapered head tube, internal cable routing, down tube guard, aluminum rocker link, four-position adjustable Mino Link, ABP, Boost148, 120 mm travel
• Fork: RockShox Pike Ultimate, DebonAir spring, Charger 3.1 RC2 damper, 44 mm offset, Boost110, Maxle Stealth axle, 130 mm travel
• Shock: RockShox Deluxe Ultimate RCT, 185 x 50 mm
• Max. compatible fork travel: 140 mm

Wheels

• Front Wheel:
  • Size: S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 27.5"
  • Size: M, ML, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt disc mount, Boost110, 15 mm thru axle, 29"
• Rear Wheel:
  • Size: S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle, 27.5"
  • Size: M, ML, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt disc mount, Boost148, 12 mm thru axle, 29"
• Tires:
  • Size: S: Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead core, 120 TPI, 27.5 x 2.40
  • Size: M, ML, L, XL: Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead core, 120 TPI, 29 x 2.40
• Tire Spare Part: Bontrager TLR Sealant, 177 ml
• Rim Tape: Bontrager TLR
• Max. Tire Size: Frame: 29 x 2.50"

E-System

• Battery: SRAM eTap battery pack (with charger)

Drivetrain

• Shift Lever:
  • SRAM AXS POD
  • SRAM AXS POD, coupled with dropper post
• Rear Derailleur: SRAM X0 Eagle AXS, T-Type
• Crank: SRAM X0 Eagle, DUB, steel chainring (30T), T-Type, 55 mm chainline, 170 mm crank arm length
• Bottom Bracket: SRAM DUB MTB Wide, 73 mm, BSA thread
• Cassette: SRAM Eagle XS-1295, T-Type, 10-52T, 12-speed
• Chain: SRAM X0 Eagle, T-Type, 12-speed
• Max. Chainring Size: 1x: 34 teeth, min. 30 teeth

Components

• Saddle: Verse Short Pro, carbon rails, 145 mm width
• Seatpost:
  • Size: S: RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
  • Size: M, ML, L, XL: RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
• Handlebar/Stem (integrated):
  • Size: S: Bontrager RSL, integrated handlebar/stem unit, OCLV Carbon, 27.5 mm rise, 820 mm width, stem with 0 degree rise, 35 mm stem length
  • Size: M, ML, L, XL: Bontrager RSL, integrated handlebar/stem unit, OCLV Carbon, 27.5 mm rise, 820 mm width, stem with 0 degree rise, 45 mm stem length
• Brake:
  • SRAM Level Silver, hydraulic 4-piston disc brake
• Brake Disc: SRAM HS2, 6-bolt, 180 mm
• Brake Disc Diameter: Max. brake disc diameter: Frame: 200 mm (min. 180 mm)

Weight

• Weight: M - 13.20 kg / 29.11 lbs (with TLR tire sealant, without tubes)
• Max. Weight: This bicycle has a maximum weight limit (bicycle, rider, and cargo) of 136 kg.

* Specification may vary in details in exceptional cases due to manufacturer.
