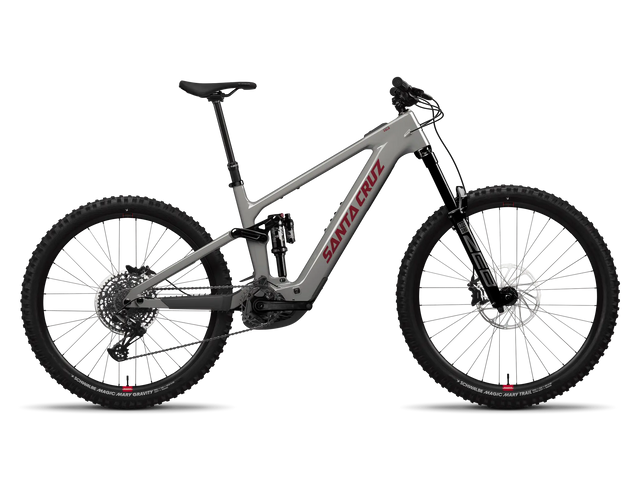

Santa Cruz Vala 1 C MX 25 - R-Kit - Gloss Grey

For extraordinary riding quality
The Vala is a full-fledged e-bike that offers precision and power. It is built for those seeking concentrated performance on the best trails. Perfectly balanced, finely suspended, and as always, crafted in the best quality.

Available in: C & CC Carbon
Wheel size: MX
Front travel: 160mm
Rear travel: 150mm
Motor: Bosch Performance Line CX
Battery capacity: 600 Wh

PREMIUM EMTB POWER MEETS SANTA CRUZ QUALITY
All legendary Santa Cruz features - superior handling, premium suspension, and long lifespan - paired with the class-leading Bosch Performance Line CX motor and a fun-oriented battery solution. The Vala is a full power eMTB for top trail quality.

BEST HANDLING AS STANDARD
Robust, lightweight carbon frame, strong suspension performance, and independently adjustable FlipChips for geometry and kinematics form a customizable chassis that brings full riding fun to your trails.

PREMIUM PERFORMANCE
The Bosch Performance Line CX is powerful, reliable, and quiet. The available power and natural power delivery bring the fun to the uphill.

RANGE FOR PERFECT HANDLING
600 Wh is optimal for most tours. The relatively lightweight battery significantly improves the riding characteristics. The 250 Wh PowerMore Range Extender offers the possibility to cover more distance. You only carry the extra weight when you need it.

INDEPENDENTLY ADJUSTABLE GEOMETRY AND PROGRESSION
The Geo-FlipChip raises or lowers the bottom bracket by 4mm and adjusts the head angle by 0.3 degrees. The Progression-FlipChip changes the progression from 26-29%.

TOOL MOUNT
The discreet mount under the top tube allows for clean storage of tools, tubes, or an AirTag on the bike.

ROBUST HARDWARE
Santa Cruz typical are the axles and linkage extremely robust, reliable, and maintenance-friendly. We install high-quality, sealed Enduro MAX bearings, which all first owners receive for free as replacements for the lifetime.

DISCREET DISPLAY
The integrated display on the top tube - the System Controller - shows the battery charge status and the selected support level. The System Controller can also be used to switch on, off, and change modes. Exact battery charge in % and range can be accessed via the app.

4 SUPPORT LEVELS
With the tidy, wireless remote on the handlebar, you can switch between four support levels as standard - Eco, Tour, eMTB, and Turbo. You can also customize the different modes in the Bosch Flow App.

LOW CENTER OF GRAVITY
The integrated 600Wh battery allows for a lightweight construction and brings agility and riding fun. The optional 250Wh PowerMore Range Extender gives you the flexibility to increase the range when needed.

BOSCH FLOW APP
With the Bosch Flow App, you connect your bike experience. You can adjust the support levels, load routes, track tours, and see the range. With the Range Control Tool, you can choose the right support levels to ensure you reach your destination safely.

Equipment:
Kit: R
Weight: 49.49 lbs / 22.45 kg
Material: Carbon C
For our C Carbon frames, we use the same exclusive processes as for the highest quality level frames (CC Carbon) and achieve the same legendary stability and stiffness for which our frames are known. We achieve this by using a different carbon material, which leads to a minimal weight increase.
Travel: 150 mm
Wheel Size: MX
MX Wheels: The MX setup combines the sovereignty of the 29" front wheel with the agility of the 27.5" rear wheel. The perfect mix for full control and lots of fun on the trails.
Shock: FOX Float X Performance, 205x60
Fork: RockShox Zeb Base, 160 mm
Derailleur: SRAM NX Eagle, 12-speed
Right Shifter: SRAM NX
Cassette: SRAM PG1230, 12-speed, 11-50t
Chain: SRAM NX Eagle, 12-speed
Headset Bearings: FSA IS-2/47/42 ACB - or - Cane Creek 10 IS Integrated Headset
Rear Tire: Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft
Front Tire: Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Valves: Reserve Fillmore Valves
Front Hub: SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Rim: Reserve 30|HD AL
Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Rim: Reserve 30|HD AL
Front Brake Rotor: Avid Centerline 220 mm
Rear Brake Rotor: Avid Centerline 220 mm
Brakes: SRAM DB8 Stealth
Crankset: E13 Helix eSpec, 160 mm
Crank Length: S/M/L/XL/XXL - 160 mm
Handlebar: e13 TRS Base
Handlebar Width: S - 760 mm, 20 mm Rise, M/L/XL/XXL - 800 mm, 35 mm Rise
Stem: e.13 Base, 40 mm - or - RaceFace Chester, 40 mm
Stem Length: S/M/L/XL/XXL - 40 mm
Saddle: SDG Bel-Air V3, Max Steel
Seatpost: SDG Tellis Dropper, 31.6 mm
Dropper Length: S - 125 mm, M - 170 mm, L/XL/XXL - 200 mm
Grips: Santa Cruz Bicycles House Grips
Battery: Bosch PowerTube Battery 600Wh
Motor: Bosch Performance CX BDU38

* Specification may vary in details in exceptional cases due to manufacturer.
